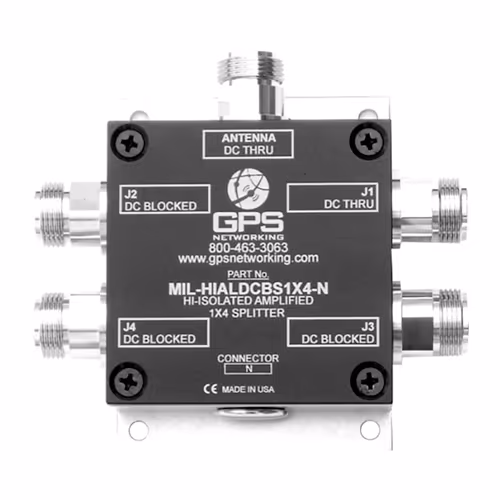

Military High-Isolation Amplified Networked 1x4 GPS Antenna Splitter | 1-input & 4-outputs, TNC Connector
Product Description
This Military Qualified High-Isolation amplified network loaded DC blocked GPS splitter features one input and two outputs for spitting RF frequencies from 1.1 GHz — 1.7 GHz. Each output port (J1–J8) is isolated from external signals to prevent interference. In the standard configuration, the J1 port will pass DC voltage from the connected device and pass power to an antenna or other devices. Ports J2–J8 are DC blocked and loaded with 200Ω resisters for preventing alarm faults. Mil-Specs splitters are qualified to rigorous MIL-STD 810F environmental & MIL-STD-461F EMI standards.
This Mil-Spec amplified, high-isolation GPS amplified splitter (EDMO# MILNHIALD4) includes one input and four outputs each with TNC connectors, 5-volts network option, and a military DC connector that uses DC voltage from 9–32 VDC.
Features
- Precise amplitude balanced: <1 dB variation between ports
- Flat group delay: <1 ns variation between L1 & L2
- High isolation: 40 dB between ports, across operating frequency
- Wide accepted frequency range: covering entire L-band & major GNSS constellations
- Efficiently blocked ports: 200Ω resistor prevents antenna alarm faults
- Matched phase balance: <13° variation between ports
- Qualification and test reports available
Specifications
Weight:
11.7 oz (332 g)
Dimensions:
1.3 x 2.5 x 2.5 in (not including connectors)
Operating Temperature Range:
-57°C to 87°C
Frequency Range:
1.1 GHz – 1.7 GHz
Impedance:
50Ω
Required Input Voltage:
3.3 VDC – 15 VDC
Current Draw:
17 mA, typical (20 mA, max.)
Gain:
1.5 dB – 4.5 dB (3.0 dB, typ.)
Input SWR:
2.0:1, typ.
Output SWR:
2.0:1, typ.
Noise Figure:
L1: 3.6 dB
L2: 6.0 dB
Gain Flatness:
0.5 dB , typ. (1.5 dB max.)
Amplitude Balance:
0.5 dB, typ. (1.5 dB max.) between ports
Phase Balance:
12° typical between ports
Isolation:
30 dB – 50 dB between ports
Group Delay Flatness:
0.25 ns, typ. (1.0 ns max.) between L1 and L2 frequency bands
Input P1dB:
-22.7 dBm, 1 dB compression point
Power Source:
9 VDC — 32 VDC [customer supplied] MIL-DTL-5015 10SL DC Connector (includes mate)
Output Voltage:
5V at 130 mA
Connector Type:
TNC female
