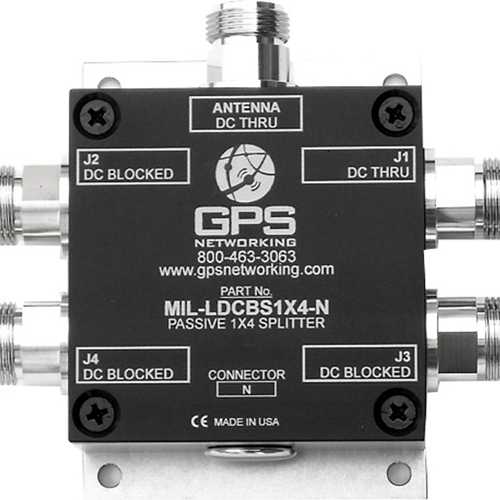

Passive Military GPS Splitter | 1 Input, 4 Output, TNC Connectors
Product Description
The MIL-LDCBS1X4 military GPS splitter is a passive one input, four output RF splitter that splits signals from 1.1 GHz to 1.7 GHz. This equipment is designed to passively split signals within the L-band to provide multiple devices with the signal from a single antenna. In the standard configuration, the J1 port will pass DC voltage from a connected device and pass this power to the antenna or other devices upline from the splitter. The other ports (J2-J4) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw which prevents antenna alarm faults. All MIL-Spec splitters are qualified to the rigorous MIL-STD 810F environmental & MILSTD-461F EMI standards.

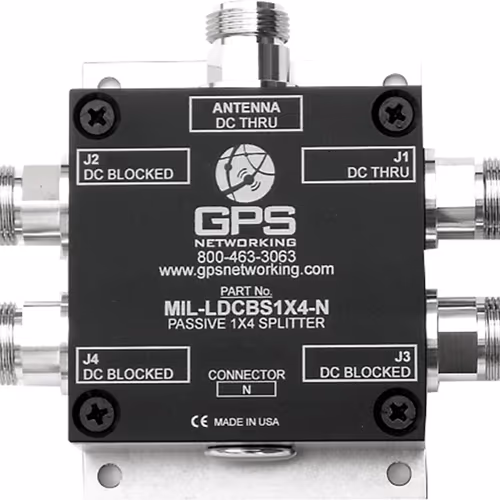

This mil-spec GPS splitter (EDMO# MILLDCBS4T) features one input, four outputs, and has TNC-type connectors.
Features
- Precise Amplitude Balance: Less than 1 dB variation between ports
- Flat Group Delay: Less than 1ns variation between L1 and L2
- Low Insertion Loss: -7.5dB loss is typical across all operating frequencies
- Wide Accepted Frequency Range: Accepts signals from the entire L-Band, covering all major GNSS constellations
- Efficiently Blocked Ports: Uses 200Ω resistors to prevent antenna alarm faults from connected devices
- Matched Phase Balance: Less than 2° of variation between ports
Specifications
Weight:
11.7 oz (332g)
Dimensions:
3.26 x 2.5 x 1.29 in (without connectors)
Operating Temperature:
-57°C to 87°C
Housing Base Plate Finish:
Electroless Nickel-Plated (MIL-C-26074C, class 1)
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Input SWR:
2.0:1, max.
Output SWR:
2.0:1, max.
Insertion Loss:
-6.5 dB to -8.5 dB (-7.5 dB, typical)
Gain Flatness:
0.25 dB, typical (1.0 dB, max.)
Amplitude Balance:
0.15 dB, typical (1.0 dB, max.)
Phase Balance:
2.0°, max
Isolation:
L1: 22 dB
L2: 15 dB
Group Delay Flatness:
0.10 ns, typical (1.0 ns, max.)
Connector Option:
TNC-type female
Product Codes
- Mfr Part No:MIL-LDCBS1X4-TNC
- EDMO #:MILLDCBS4T
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
