Military Amplified GPS Splitter | 1 In, 4 Out, TNC, External Power, 5VDC
Product Description

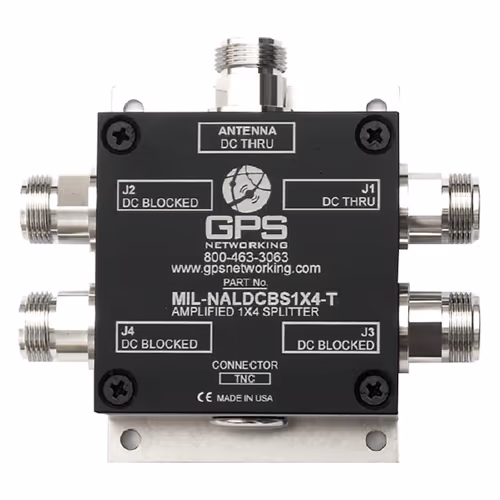

The MIL-NALDCBS1X4-T/5/MC GPS Splitter (GNSS Splitter) is a one input, four output amplified splitter based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS Frequencies) with excellent gain flatness. All Mil Spec splitters passed rigorous MIL-STD 810F testing detailed in the separate Qual Test Summary Certification.
Version (EDMO# MIL-NALDCB) is a 1 input x 4 output amplified splitter with TNC connectors, external power network option, 5VDC output, military DC connector.
Features
- Hermetically sealed
- EMI shielded
- Amplifier gain 22dB typical
- Passes all GNSS frequencies (entire L-band)
- Extremely flat group delay
- Less than 1ns variation
- Military qualified 1X4 splitter
- MIL STD 810F, MIL STD 704
- Excellent gain flatness
- DC blocked outputs feature 200Ω loads
- Prevents antenna alarm faults
Specifications
Weight:
12 oz
Dimensions:
2.5 x 2.5 x 1.3 in. overall
Temperature:
-40ºC to 75ºC
DC option:
All DC Blocked Outputs include 200Ω Load Standard
Any port can be custom selected to Pass or Block DC
Connector:
TNC
Product Codes
- Mfr Part No:MIL-NALDCBS1X4-T/5/MC
- EDMO #:MIL-NALDCB
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
- ECCN:7B994
- ECCN:7B994
- SCHEDULE B CODE:8526.91.0070
- SCHEDULE B CODE:8526.91.0070
