MD41 Remote Transfer Relay | 28V, 24 Pole
Product Description

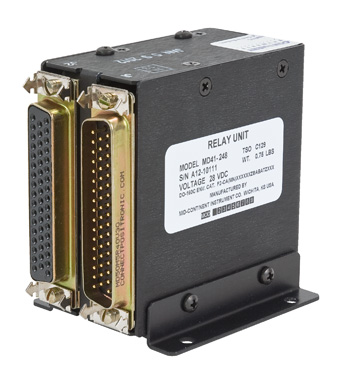

The MD41-244/248 is a bulkhead mounted remote transfer relay unit specifically designed for switching a CDI or HSI Indicator between two aircraft radio navigation systems. The remote switching unit is designed to be used with the companion MD41-1XXX series Annunciation Control Unit (ACU). This pertains to GPS systems where the user desires to share a common CDI or HSI between an existing NAV system and a GPS system.
Version (EMDO# MD41-248) is a 28V remote mounted transfer relay.
Features
- 24 pole
- 8 relay pairs with 3 poles per pair
- Relay pairs activated individually by voltage, ground keying, or as a group by ground keying
- Interlocking of transfer relays
- ILS override automatically switches to Nav mode when tuned to ILS frequency
- Adjustable dimming regulator
- Gold plated contacts
- Nitrogen filled
Specifications
Weight:
0.75 lb
Dimensions:
2.86 x 2.60 x 1.52 in.
Temperature:
-55ºC to +70ºC
Humidity:
95% non-condensing
Altitude:
55,000 ft
Product Codes
- Mfr Part No:MD41-248
- EDMO #:MD41-248
- Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
- Category:GPS Components & Accessories
