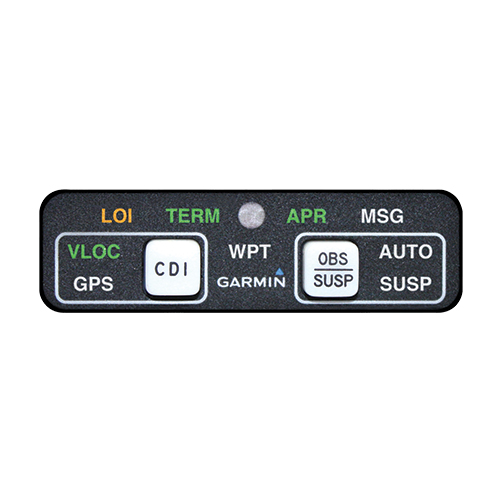

MD41 Series Annunciation Control Unit | 14V, Horizontal, Garmin
Product Description
The MD41 is a compact, self-contained Annunciation and Control Unit (ACU). The fully integrated control unit provides annunciation and mode selection for Global Positioning System (GPS) / Satellite-Based Augmentation System (SBAS) navigators. This series of the MD41 product family is specifically designed to work with the Garmin GTN 6XX/7XX series WAAS navigator systems and derivatives with equivalent functionality. It combines the necessary functions and annunciations required to interface with an approved system and provide regulatory compliance with GPS/SBAS minimum performance specifications.
This MD41 (EDMO# MD41-1512) is a 14V unit with horizontal orientation compatible with the Garmin GTN 650/750 GPS system.
Features
- Compatible with Garmin GTN 6XX/7XX WAAS Navigators
- Includes CDI and suspend mode switching, independent of OBS per new GTN requirements
- Compact, self-contained GPS annunciation control unit
- Automatic-dimming and daylight readable LED lighting
- Single cutout and locking D-subminiature connector reduces installation costs
- Quality Mil-Spec connector included
- TSO-C129 certified
- Qualified to RTCA DO-160 environmental specs
Specifications
Weight:
0.26 lb
Dimensions:
3.25 x 3.20 x 0.80 in.
Temperature:
-55ºC to +70ºC
Humidity:
95% non-condensing
Altitude:
55,000 ft
Product Codes
- Mfr Part No:MD41-1512
- EDMO #:MD41-1512
- Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
- Category:GPS Components & Accessories
