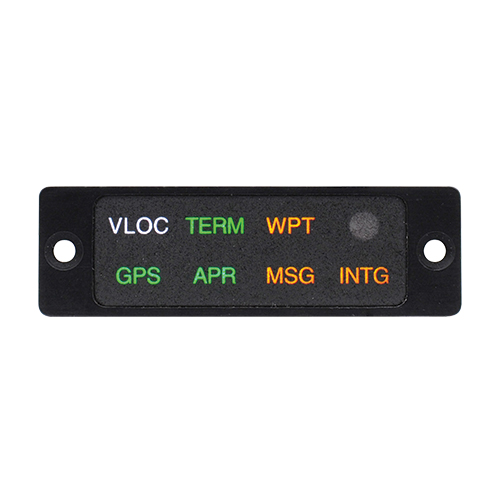

MD41 Series Annunciation Control Unit | 14V, Horizontal, Garmin
Product Description
The MD41 is a compact, self-contained GPS Annunciation unit. This unit displays status annunciation received from the compatible GTN GNS-430/530, GTN 650/750 and Avidyne IFD540 GPS systems.
Version (EDMO# MD41-1484W) is a 14V unit with horizontal orientation with no buttons and compatible with Garmin GNS-430/530, GTN 650/750 and Avidyne IFD540 models.
Features
- Compatible with Garmin GNS-430/530, GTN 650/750 and Avidyne IFD540
- Compact, self-contained GPS Annunciation unit
- More than 25,000 MD41s currently in service
- 10,000 hour lamp with automatic photocell dimming and proven daylight-readability
- 14 Volt
- Horizontal configuration
- Reduces installation costs:
- Single cutout
- Panel punches available
- Easy-to-wire D-subminiature connector*
- Certified TSO C129a
- Meets RTCA DO-160C environmental specs (certified to 55,000 feet)
- Quality Mil-Spec connector included
Specifications
Weight:
0.50 lb
Dimensions:
2.45 x 2.60 x 0.75 in.
Temperature:
-55ºC to +70ºC
Humidity:
95% non-condensing
Altitude:
55,000 ft
Product Codes
- Mfr Part No:MD41-1484W
- EDMO #:MD41-1484W
- Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
- Category:GPS Components & Accessories
