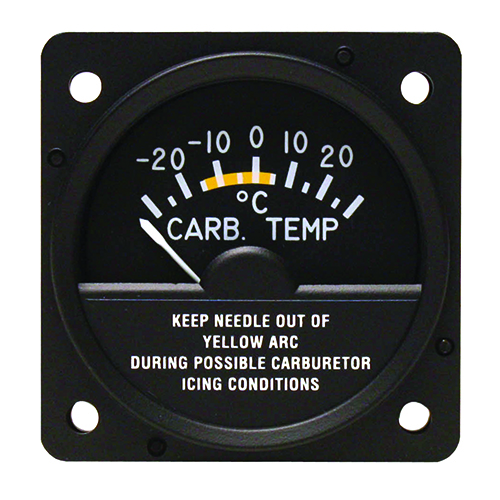

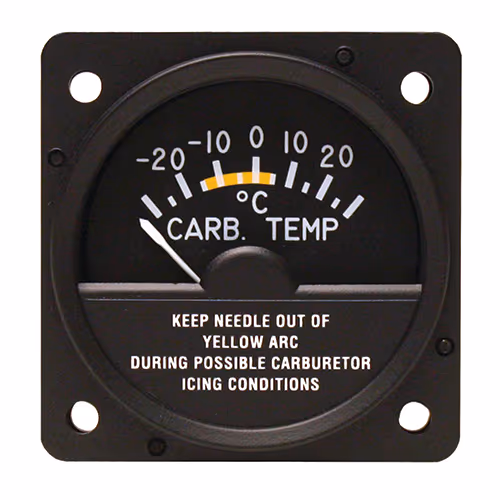

MD11 Carburetor Air Temperature Indicator | 14V
Product Description
The MD11 Series Carburetor Air Temperature Indicator senses the internal carburetor temperature when used with the B-5 Probe that is FAA approved and STC'd. The probe is designed to be installed at the throttle valve, a critical icing point in fuel induction systems. The indicator has a reading within 1ºC for maximum safety and engine efficiency.
Version (EDMO# MD11-3) is 14V.
Features
- Detects potential carburetor icing
- Reduces spark plug fouling
- Extends engine life
- Helps attain maximum fuel economy, range and power
- Probe fits pre-tapped hole in Marvel-Schebler and Bendix carburetors
- Quality connector included
- Supplemental Type Certification FAA PMA approved
Specifications
Weight:
0.3 lbs
Dimensions:
2.4 x 2.5 x 2.7 inches
Power Input:
14 VDC, 90 mA
Operating Temperature:
–40°C to +87°C (–40°F to +190°F)
Indicating Temperature:
–30°C to +30°C (–22°F to +86°F)
Altitude:
–1,000 to +40,000 feet
Humidity:
0 to 90% at 25°C
Vibration:
.02 in. dbl. ampl., 1.5g @ 5 to 50 Hz
Certification:
FAA PMA approved
Mounting:
Front or rear panel
Case Material:
Flame-retardant polycarbonate
Connector:
3-pin AN type male (MS3102A–14S–07P)
Mating Connector:
3-pin AN type female (MS3106A14S–7S with MS3057–6A)
Product Codes
- Mfr Part No:MD11-3
- EDMO #:MD11-3
- Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
- Category:Clocks & Instruments
