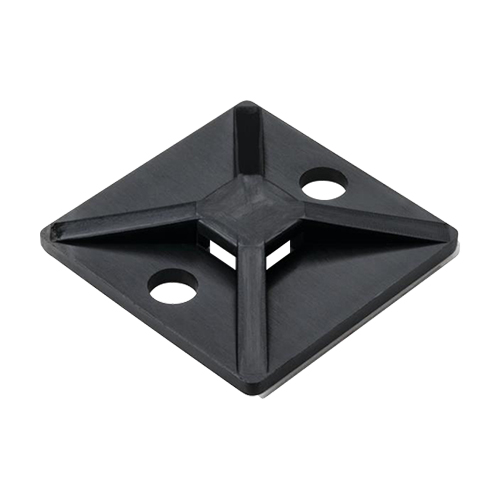

4-Way Cable Tie Mount | Black, T18 – T50 Cable Ties, 1.12 x 1.12 x 0.22 Inches
Product Description
These 4-Way cable tie mounts provide secure and stable mounting solutions for cable tie bundles. The Rubber-based adhesive back is ideal for indoor lightweight use while the two, predrilled holes offer reinforcement for securing heavier cable bundles.
This cable tie mount (EDMO# MB-4A-0) is compatible with T18 – T50 cable ties, colored black, and is 1.12 x 1.12 x 0.22 inches
Features
- Compatible with T18 – T50 cable ties
- Provides secure and stable mounting location for securing cable bundles
- 4-way cable opening allows ties to be mounted parallel or perpendicular to bundles
- Rubber-base adhesive provides ideal indoor use up to 0.6 lb
- Two predrilled holes offer extended mounting solutions
- Extended adhesive liner removes easily
Specifications
Dimensions:
1.12 x 1.12 x 0.22 in (28.4 x 28.4 x 5.6 mm)
Fastening Method:
Screw mounting with rubber-based adhesive
Compatible Cable Ties:
T18 – T50
Max. Cable Tie Width:
0.18 in (4.6 mm), max.
Mounting Hole Diameter:
0.18 in (4.6 mm)
Mounting Hole Centers:
0.8 in
Material:
Polyamide 6.6 (PA66)
Adhesive Material:
Synthetic rubber with base of polyethylene foam
Flammability:
UL-94 V2 (excluding adhesive)
Temperature:
0°F to 150°F (-18°C to 66°C), adhesive
-40°F to 185°F (-40°C to 85°C), operating
RoHS Complaint:
Yes
Product Codes
- Mfr Part No:MB4A0H4
- EDMO #:MB-4A-0
- Brand:HELLERMANNTYTON
- Category:Wire, Cable & Accessories
