Map Light 4 FAA-PMA Cessna Certified LED Maplight | white, 12V, Panel Mount
Product Description

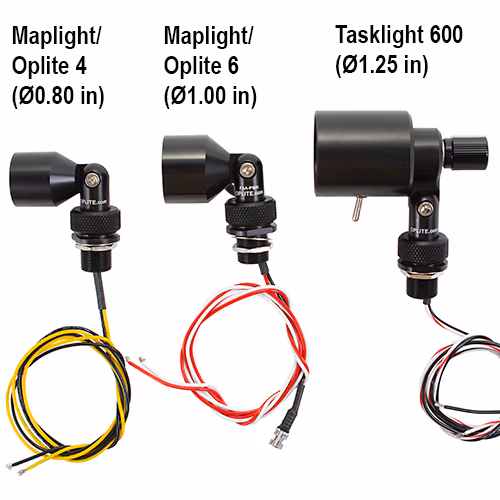

The MAP 4 series panel mountable LED maplight is FAA-PMA certified for use in Cessna aircraft and features four, dimmable LEDs for providing just the right amount of light for operational tasks. This task light is is available in four colors: green, red, blue, and white. It is easy to install and is fully-adjustable in two directions. Also, the MAP 4 maplight is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA approved protocols for quality.
This MAP4 series (EDMO# MAP4-W12) is Cessna certified, features white lighting, operates on a 12-volt power supply, and has a lamp head diameter of 0.80 inch.
Features
- 20,000 hour LED lamp life
- Fully-adjustable in two directions
- Surface mountable
- MIL-SPEC Anodized construction
- Precision CNC machined
- Compatible with all dimming systems
- Available in four colors: green, red, blue, or white
Specifications
Installed Height:
2.125 in (at 90° position)
Lamp Diameter:
0.80 in
Thread:
15/32-32 x 0.45 in
Color:
white
Input Voltage:
12 volt
Mounting Hole:
15/32 in thru hole
Approvals:
FAA-PMA for Cessna aircraft
Product Codes
- Mfr Part No:MAP4-W12
- EDMO #:MAP4-W12
- Brand:OPLITE
- Category:Aircraft Lighting
