M81714/63 Series II Socket Ground Module | Flange Mount, 20/20 Contact Size

The MIL-T-81714 series II, class D socket ground modules accommodates 12–26 AWG wire and provide a broad range of customized bussing arrangements. These modules are robust, reliable and performs to M81714 electrical and mechanical standards. The various types of feedback and feedthrough, electronic, in-line splice, and ground terminals provide installers options for customizing their rail and termination installation. The series II commercial socket junction modules use M39019/22 socket and pin contacts.

Flange mount, grounding modules may mound directly to a ground plane or ground lug to create a sealed multi-wire ground location. It may also be mounted to a bus bar for power distribution, sensing, or metering.

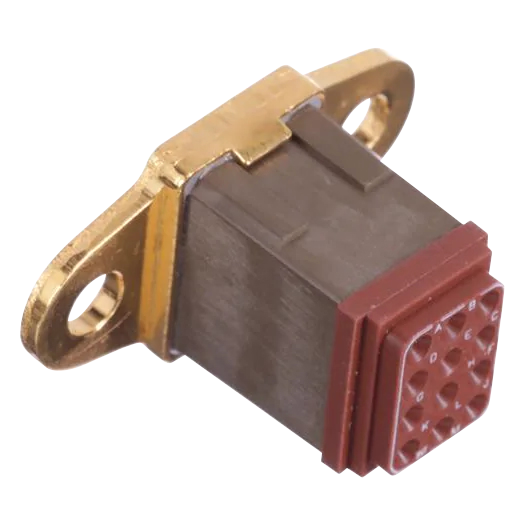

This series II flange mount socket ground module (EDMO# M8171463-) features 12 contact positions each of size 20/20 in a 4x3 configuration.
