M24308 Series D-Sub Connector | Crimp Plug, 9 Contact, Size 1 Shell
Product Description
Qualified to MIL-DTL-24308, Amphenol’s D-Sub connectors are sub-miniature rack & panel type connectors with polarized shells. They use pin & socket machined contacts that provide high reliability & density for the connectors. With its versatile design, these high-performance connectors are used in a variety of applications where weight & size are critical factors.
Available in multiple QPL’s – M24308/1, /2, /3, /4, /5, /6, /7, /8, /23 & /24 - Amphenol’s D-Sub connectors come in 5 standard shell sizes (9, 15, 25, 37, & 50) and have pin counts ranging from 9 to 104. There are various termination options – solder, crimp and PC Tail in both magnetic and non-magnetic options.

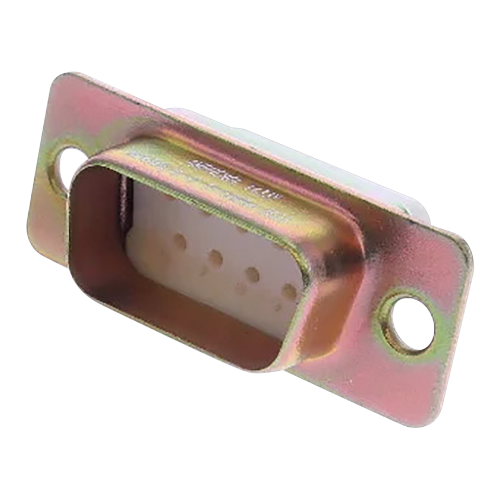

This M24308 Series Amphenol D-Sub connector (EDMO# M243084-1F) is a crimp type plug connector with 9 contacts and a size 1 shell.
Features
M24308 Series D-Sub Connector
Crimp Type Plug
Size 1 Shell
9 Contact
20-26 AWG
Yellow Cadmium-Plated Steel
Specifications
Connector Type:
Plug
Termination Type:
Crimp
Shell Size:
1
Number of Contacts:
9
Wire Gauge:
20-26 AWG
Contact Rating:
7.5 A
Test Voltage:
1000 Vrms
Insulation Resistance:
> 5000 MΩ
Contact Resistance:
7.3 mΩ
Insertion/Removal Force:
4 lbs
Durability:
500 Cycles
Operating Temperature:
-55°C to 125°C
Salt Spray:
48 Hrs
Damp Heat:
10 Days
Shell Material:
Steel
Shell Finish:
Yellow Cadmium Plating
Contact Material:
Copper Alloy
Contact Finish:
Gold Plating
Product Codes
- Mfr Part No:M24308/4-1F
- EDMO #:M243084-1F
- Brand:AMPHENOL
- Category:Electrical Interconnect
- SCHEDULE B CODE:8536.90.4000
