M-Series Mini Ground Power Unit | 35A, 14V, Piper Plug

Select Voltage

WHITE LIGHTNING GPU

Call For Pricing

In stock

EDMO # M1435P

MFR Part # M1435P

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The M-Series Mini-GPUs achieve a remarkable 88% efficiency to provide up to 35A of power at 14.25 volts DC, perfectly replicating the in-flight electrical environment. Its cool running, switching-mode power modules provide massive amounts of stable, noise-free power, compatible with input voltages from all over the world. It will continuously power the most delicate avionics and airframe systems without risk of depleting the ship’s battery or causing costly damage.

The Model M1435P provides 14-volt DC power for:

Avionics demonstration and testing
Database and firmware updates
Flight planning and cockpit procedures training
Troubleshooting & maintenance
Powered pre-flight inspections and battery top-off

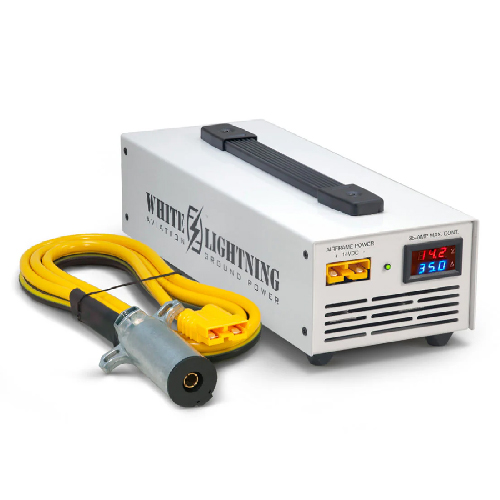

This M-Series Mini-GPU (EDMO# M1435-EXP) includes a 6-foot airframe output cable with a yellow SB50 connector that protect from damage due to accidental voltage mismatch. The 2-pin "Piper" oval plug connects to the aircraft.

Features

Output: 14.25 VDC, 35 Amps maximum continuous
Input: Universal, world-wide, 85-264 VAC, 47-63 Hz
Switching Mode Output Module with automatic self-protection for short circuit / overload / over voltage / over temperature

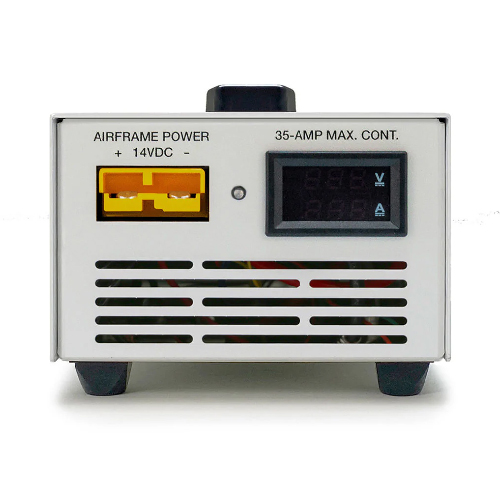

Digital output meters for both voltage and amperes
Includes detachable input and output cables
2-pin "Piper" oval plug connects to the aircraft
Compact, lightweight design utilizes highly efficient digital switching-mode power modules for voltage stability and long-term reliability

Also Purchased

Specifications

Output:

14.25 VDC, 35 Amps maximum continuous Input: Universal, world-wide, 85-264 VAC, 47-63 Hz Weight: 8 lb (without cables) Unit size: 13.4 x 5.32 x 4.13 in
