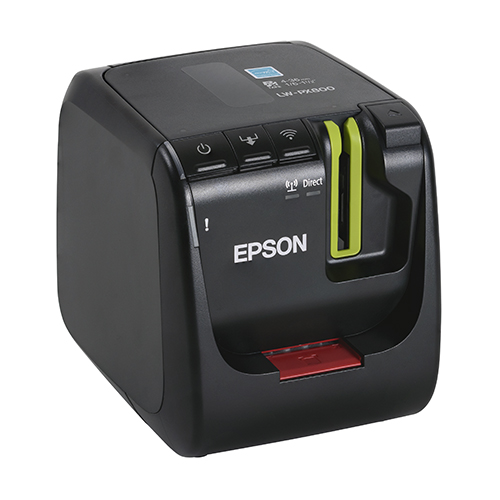

Epson Labelworks LW-PX800

Product Description

The Epson LW-PX800 LABELWORKS Label Printer is an easy-to-use, flexible and powerful desktop label printer that is an essential tool for the entire workplace. With fast print speeds, compact design and excellent label-creating software, the LW-PX800 offers the ability to communicate visually across a wide variety of industry applications. Wi-Fi connectivity allows the label printer to be used by multiple users to increase the flexibility of the printer and reduces cost. The LW-PX800 is designed to print on more than 163 materials including magnetic tape, heat shrink tube, glow-in-the-dark, and industrial adhesive labels up to 1.5 inches in width.

Features

The LW-PX800 kit (EDMO# LW-PX800) includes:

Epson LW-PX800 Label Printer
Label Editor Professional Software download
USB cable
AC adapter
1 tape cartridge (212BWPX)
Owners manual

Features:

Quickly make labels and signs for safety, facility, GHS, inventory, electrical, and many other applications
The software contains over 1,000 symbols for a variety of safety, organizing, and decorative labels
Commonly used bar codes for inventory management, asset tracking, and other applications; also create 2D QR codes that contain information like website links, phone numbers, and detailed product information
Half-Cut capability cuts only the top portion of the label to make it easier to peel off and create strips of labels
Data imported from Excel or from tables in the software
Labels can be created in large batches
user friendly software is easy to navigate layout with quick access icons and is fully-loaded with symbols, bar codes, and templates
Import custom images or logos
Print from any Android® or Apple® smart device using the Epson iLabel App
Saves on wasted tape with 1 mm margin setting*
Fast print speeds of up to 35 mm/sec
Prints on supplies up to 36 mm (1.5 inch) wide
Prints on shrink tube up to 21 mm (7/8"") wide
Crisp, clear 360-dpi printing resolution
Economical tape cartridges yield more labels
Compact, top-loading design for small desktop footprint
Half-cut function makes it easy to serialize strips of labels
Label Editor Professional software is included FREE for PC printing
Label Editor Lite software FREE for printing from a Mac
Wi-Fi printing with any smart device and Epson iLabel or data-com app
Network connectivity makes it easy for multiple users to share one printer
Integrated PeelGuard® trimmer extends label life by rounding label corners
ENERGY STAR® certified
*10 mm lead is standard on a single label, or the first label in a batch
Lifetime warranty

Specifications

Weight:
2.38 lb

Dimensions:
12.3 x 15.1 x 13.8 cm

Printer Type:
Thermo transfer desktop

Print Resolution:
360 dpi/ 384 dot

Print Speed:
35 mm/sec

Barcode Formats:
15 EAN 8, EAN 13, Code 39, Code 128, UPC-A, UPC-E, NW-7, ITF, EAN 128, GSI DataBar, Data Matrix, Micro QR Code, QR Code, Maxicode, PDF 417

Software:
Label Editor Professional, Label Editor Lite (Mac)

Database File Compatibility:
.csv, .txt, .xls, .xlsx

Tape Cutter:
Automatic tape cutter; half cut and full cut

Media Tape:
PX Tape (continuous madia cartridge)

Media Widths:
4 mm – 36 mm Adhesive/Magnetic Tapes; 3 mm – 21mm Heat Shrink Tube

Trimmer:
Peelguard® Trimmer

Operating System:
Windows® 7, 32/64; Vista 32/64; XP 32/64, Mac

Interface:
USB 2.0 Full-speed, wired LAN (10/100BASE-TX), wireless LAN (IEEE 802.1 1b/g/n)

Power Supply:
15 ±5% VAC, adapter (included)

Ratings:
UL, CE, GS [Level 5]

Warranty:
Lifetime

Battery Options:
None

Import Graphics:
Yes

Wireless:
Yes. Wi-Fi connect. iLabel App (iOS/Android)

Network Connect:
Yes

Symbols:
839 Symbols, 8 Table Formats, 86 Borders, 158 Wizards

Multi-Line Print:
Yes

Print Rotation:
Yes

Margins:
0.04 – 19.68 1 - 500 mm

Tape-End Detection:
Yes (will continue print job from last label printed after cartridge is replaced)

Markings:
FCC CE WEEE

Product Codes

Mfr Part No:LW-PX800
EDMO #:LW-PX800
Brand:EPSON
Category:Wire, Cable & Accessories

Documents

LW-PX800 Owner's Manual
