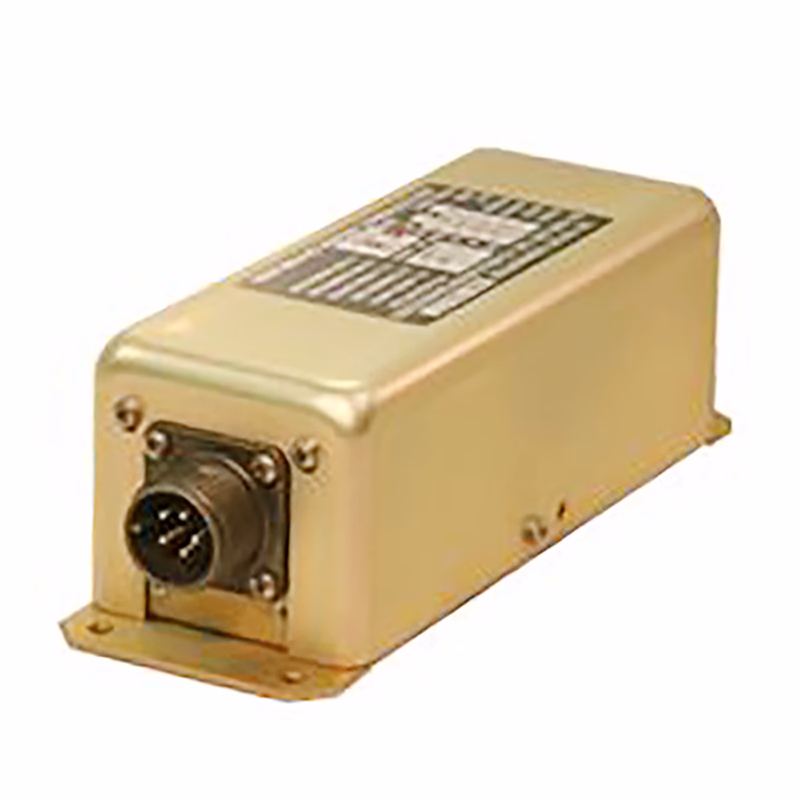

LT-71A Regulated DC to DC Converter | 112W, KPT-06B-14-5S plug
Product Description
The converter transforms an unregulated 28 VDC to a regulated and fixed DC output.
The Model LT-71A is primarily designed to supply regulated fixed DC voltage to critical communication, navigation and digital equipment.
- State of the art design for regulation and positive logic for output overvoltage protection.
- Other voltage control range is available.
- The Model LT-71A is serviceable, small and lightweight (33 watts per pound and 1.7 watts per cubic inch).
- Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202 and MIL-T-5422F class 1A.
Features
Pulse width-modulated DC to DC converter that provides regulated power
Transforms an unregulated 28 VDC to a regulated and fixed DC output
Primarily designed to supply regulated fixed DC voltage to critical communication, navigation and digital equipment
State of the art design for regulation and positive logic for output overvoltage protection
Small and lightweight
Maximum output voltage is adjustable with an internal trim pot
Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202C and MIL-T-5422F class 1A
Other voltage control range is available
The Model LT-Series is serviceable, small and lightweight (33 watts per pound and 1.7 watts per cubic inch)
Specifications
Dimensions:
2.3 x 2. 4 x 6.8 in ( 5.7 x 6 x 17 cm)
Weight:
1.5 lb
Input Voltage (VDC):
26 TO 40 VDC
Input Current (VDC) @28 VDC IN:
4.7 amps
Output Voltage:
14V
Output Current:
8.0 amps DC
Max VA Rating:
112 VA
Efficiency:
80%
Regulation:
2% for line, 2% load and 2% temperature
Output Ripple:
50 mVp-p
Altitude:
55,000 ft
Temperature:
-55°C to 71°C (sufficient cooling required @ +71°C ambient)
Overload Protection:
Input and output current pulse when overload exceeds approximately 125% of rating
Overvoltage Protection:
Output voltage is limited to approximately 125% of rating
Mating plug:
KPT-06B-14-5S
RECEPTACLE:
MS3102A14s-5P-X
INPUT VOLTAGE:
28 VDC nom., 20 to 40 VDC
PROTECTION (OVERVOLTAGE):
Input current foldback and output current limits when overload exceeds approximately 125% of rating
Product Codes
- Mfr Part No:LT-71A
- EDMO #:LT-71A
- Brand:K G S ELECTRONICS
- Category:Inverters & Converters
- ECCN:9A991
- ECCN:9A991
- SCHEDULE B CODE:8504.40.9580
- SCHEDULE B CODE:8504.40.9580
- TSO:C71
- TSO:C71
