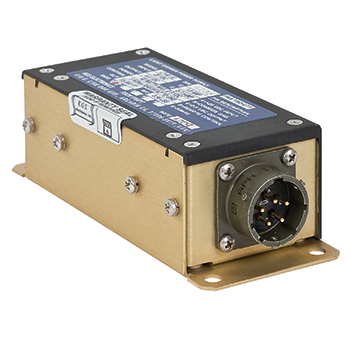

LT-48E Power Converter | 28VDC to 0-5VDC, 50W

LT-48E Power Converter | 28VDC to 0-5VDC, 50W

K G S ELECTRONICS

CALL FOR PRICING
Available To Order
EDMO#LT-48E
MFR#LT-48(E)

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The LT-48E is a pulse width-modulated DC to DC converter that provides regulated output power. This converter transforms an unregulated 28 VDC to regulated output power. The output voltage is adjusted via a remote control rheostat 5K ohm 1/2 W to ground.

The LT-48E is primarily designed to control the light intensity of incandescent bulbs in aircraft lighting. The LT-48E is qualified to the FAA technical standards order (TSO-C71) for airborne static DC-DC electrical power converters.

Features

  • State of the art design for regulation and positive logic for output overvoltage protection (PWM control topology).
  • The LT-48E is serviceable, small and lightweight.
  • Maximum output voltage is adjustable with an internal trim pot.
  • Designed to meet MIL-STD 704 Cat. B, MIL-STD-810C and MIL-STD-461A.

Specifications

Weight:
0.6 lb

Dimensions:
1.6 x 2.0 x 5.0 in.

Input voltage:
18 - 36VDC

Output voltage:
0 - 5VDC

Efficiency:
75%

Input circuit breaker:
3-5A

Temperature:
-50ºC to 70ºC

Compliance:
FAA TSO-C71

Product Codes

  • Mfr Part No:LT-48(E)
  • EDMO #:LT-48E
  • Brand:K G S ELECTRONICS
  • Category:Inverters & Converters
