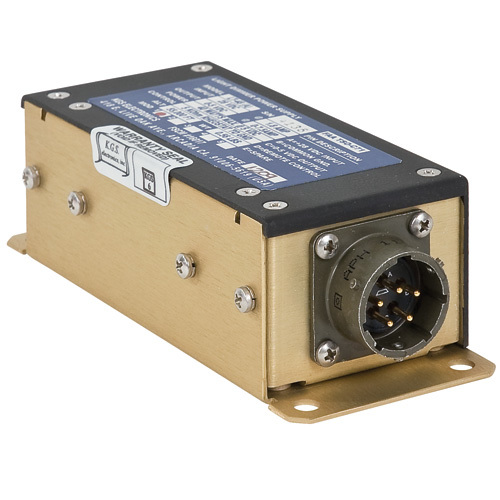

LT-46D DC Power Converter | 50 W, 13.75 VDC, TSO
Product Description
The LT-46D is a pulse width-modulated DC to DC converter that provides regulated output power. This converter transforms an unregulated 28 VDC to regulated output power. The output voltage is adjusted via a remote control rheostat 5K ohm 1/2 W to ground. Fixed output and voltage control models are also available.
The LT-46D is primarily designed to control the light intensity of incandescent bulbs in aircraft lighting. The LT-46D are qualified to the FAA technical standards order (TSO-C71) for airborne static DC-DC electrical power converters.
Features
- State of the art design for regulation and positive logic for output overvoltage protection (PWM control topology).
- Serviceable, small and lightweight.
- Maximum output voltage is adjustable with an internal trim pot.
- Designed to meet MIL-STD 704 Cat. B, MIL-STD-810C and MIL-STD-461A.
Specifications
Weight:
0.6 lbs (272 grams)
Dimensions:
1.6 x 2.0 x 5.0 in (4.1 cm x 5.1 cm x 12.7 cm)
Input Voltage:
20-36 VDC
Input Current:
2.2 ADC
Output Voltage:
0-12 VDC
Output Current:
4.1 A
Efficiency:
80%
Input Circuit Breaker:
3-5 A
Output Ripple:
8 mVpp @ 25°C (typical), 25 mVpp (max)
Regulation:
2% for line, 2% load and 2% temperature
Overvoltage Protection:
Voltage limited to 125%
Overload Protection:
Current limited to 125%
Reverse Polarity Protection:
Input has reverse polarity diode in shunt to open 3-5 A
Operating Temperature:
-50°C to 70°C
Altitude:
55,000 ft
Compliance:
FAA TSO-C71
Product Codes
- Mfr Part No:LT-46D
- EDMO #:LT-46D
- Brand:K G S ELECTRONICS
- Category:Inverters & Converters
