EDMO

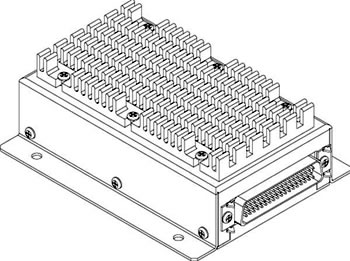

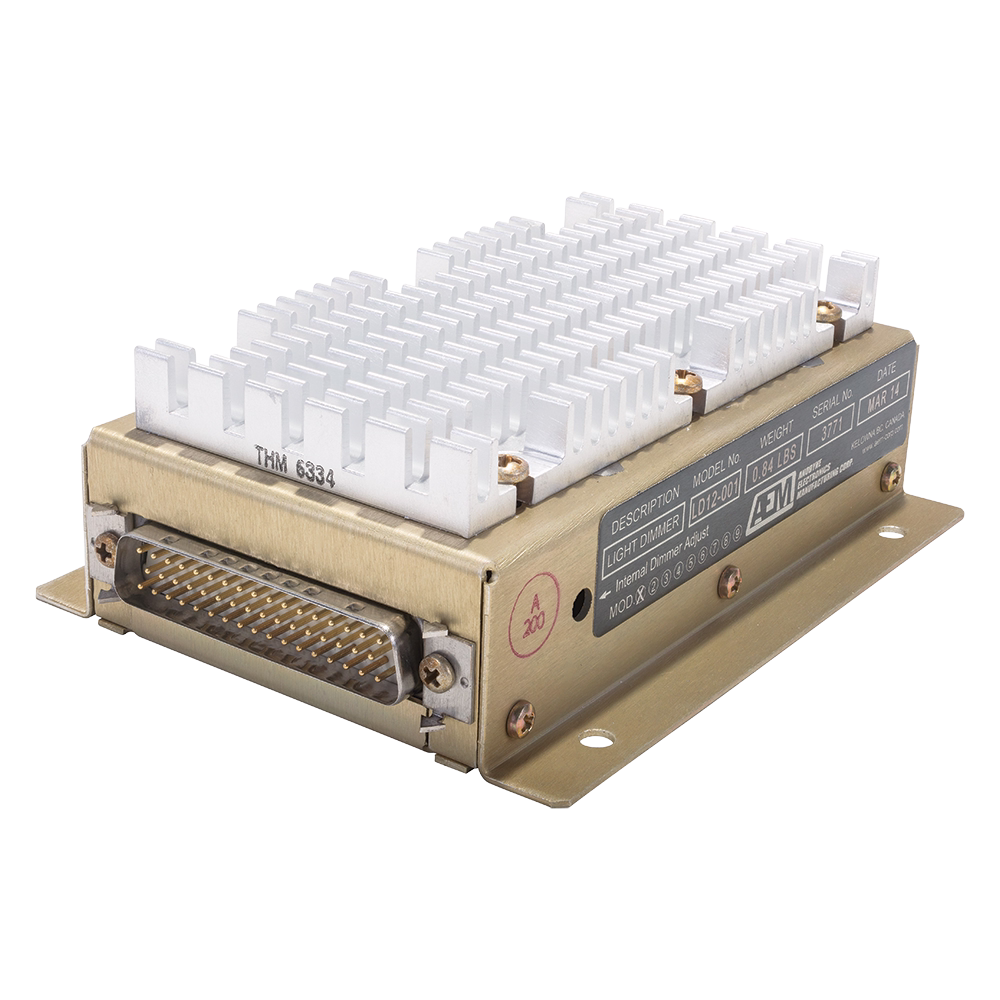

LD12 Light Dimmer

LD12-002

CANYON AEROCONNECT

CALL FOR PRICING
Special order
EDMO#LD12-002
MFR#LD12-002

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The LD12 light dimmer provides lamp dimming and test functions for lamps and annunciators independent from the aircraft's existing dimming system. It offers 12 circuits of lamp dimming and test functions and direct interface to RS08 switching networks.

Features

  • Lamps 1 & 2 floating, 3–12 short-circuit protected

  • Fully adjustable or preset Dim/Bright/Test

Specifications

Weight:
0.44 lbs (0.20 kg)

Dimensions:
5.29 x 1.78 x 3.99 in (134.4 x 45.1 x 101.3 mm)

Operating Voltage:
28 VDC

Operating Current:
2.0 A

Product Codes

  • Mfr Part No:LD12-002
  • EDMO #:LD12-002
  • Brand:CANYON AEROCONNECT
  • Category:Aircraft Audio
  • ECCN:7A994
  • ECCN:7A994
  • PMA:PQ2204NM
  • PMA:PQ2204NM
  • SCHEDULE B CODE:8803.90.9010
  • SCHEDULE B CODE:8803.90.9010
