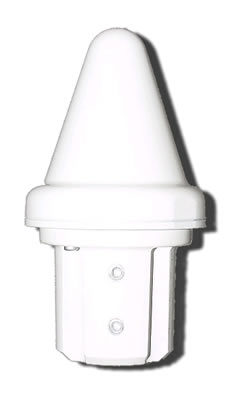

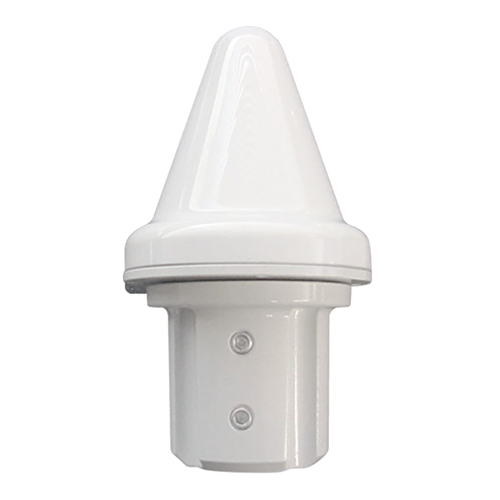

L1 GPS Active Roof Antenna | SMA Connector
Product Description
The L1GPSA active roof antenna designed to operate on the L1 carrier frequency for timing and synchronization applications. This active antenna maintains excellent performance in harsh environmental conditions. It features high gain, a low noise figure, and low operating current.
This L1GPSA active gps antenna (EDMO# L1GPSA-S) as a SMA connector.
Features
- High gain amplified root antenna: 38 dB gain
- Low noise figure: 1.8 dB typical
- Low operating current: 20 mA typical
- Enhanced immunity to lightning surge: IEC61000-4-5 Level 4 (4000V) prevents lightening induced failure
- Optional L1RAMB mount with base and pole available separately
Specifications
Weight:
6.6 oz
Dimensions:
6.6 x 3.54 in (not including connectors)
Operating Temperature:
-45°C to 85°C
Radome Material:
White polycarbonate
Mounting Base Material:
aluminum
Frequency:
1.575 GHz
Gain:
38 dB, typical
Bandwidth:
10 MHz, typical
Filtering:
-60 dB, typical
Noise Figure:
1.8 dB, typical
Output SWR:
1.5:1, max.
Characteristic Impedance:
50Ω
Req. DC Input V.:
20 VDC, typical (5.5 VDC, max.)
Current Draw:
20 mA, typical (27 mA, max.)
Product Codes
- Mfr Part No:L1GPSA-S
- EDMO #:L1GPSA-S
- Brand:GPS NETWORKING
- Category:Antennas & Couplers
