L125GPSA-T Multi-Band GNSS Active Antenna | 35dB Gain, TNC-Female

Product Description

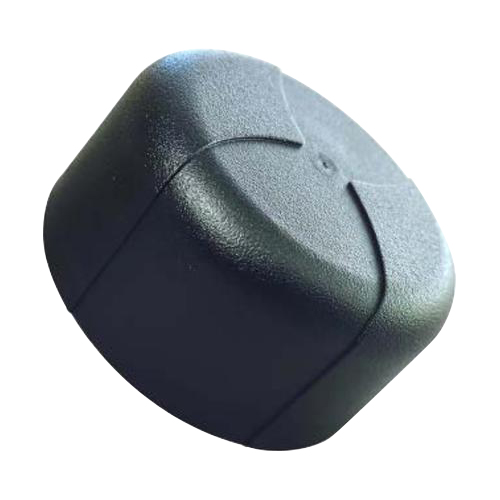

L125GPSA-T is a L1-L2-L5 active antenna solution intended to cover all GPS, Galileo, Glonass, BeiDou bands including L-Band correction services coverage. Low profile RHCP, wide band antenna is ideal solution for high-precision applications, such as autonomous vehicle navigation, smart survey devices, and GNSS reradiation.

This antenna is built on proprietary Maxtena Helicore® technology. This technology provides exceptional pattern control, polarization purity and high efficiency in a very compact form factor. Low axial ratio ensures that the antenna captures RHCP signal well and mitigates the reflected LHCP signals. Antenna ensures high signal-to-noise ratio (SNR) and GNSS signal tracking from all elevation angles in all types of environments. The antenna is ground plane independent and comes with a TNC-female RF connector.

Features

Full GPS, Galileo, Glonass, BeiDou bands coverage including L-Band correction services coverage
Low Axial Ratio
Low Noise Figure
Ground plane independent
Low power consumption
Rugged IP67 rating

Specifications

Weight:
114 g

Dimensions:
80 x 40 mm

Operating Temperature:
-40°C to 85°C

Mounting Type:
Connector Mount

Connector:
TNC

Radome/Color:
Black

Housing Material:
ABS/PC

Certificates:
IP67

Conducted Gain:
34.5 dB @ upper band
35.4 dB @ lower band

Noise Figure:
3.1 dB @upper band
2.9 dB @upper band

Voltage:
2.3 to 16 V

Current:
40 mA (max)

Out of Band Rejection:
≥ 70 dB @≥ 1700MHz
≥ 35 dB @≥ 1650MHz
≥ 35 dB @1450–1520 MHz
≥ 60 dB @1350–1450 MHz
≥ 80 dB @≤ 1125MHz

Group Delay Variation:
<3ns@L1
<4ns@L2
< 22 ns @L5

EMI Immunity Out of Band:
30 kV

Output P1dB:
12.5 dBm @upper band
13.1 dBm @lower band

Frequency Range:
1164–1300 MHz, 1539–1610 MHz

Peak Gain:
3.4 dBic @ upper band
3.3 dBic @ lower band

Peak Efficiency:
80 %@upperband
75 %@lower band

Axial Ratio:
0.5 dB (max.) @ zenith

Polarization:
RHCP

Beamwidth:
120°
