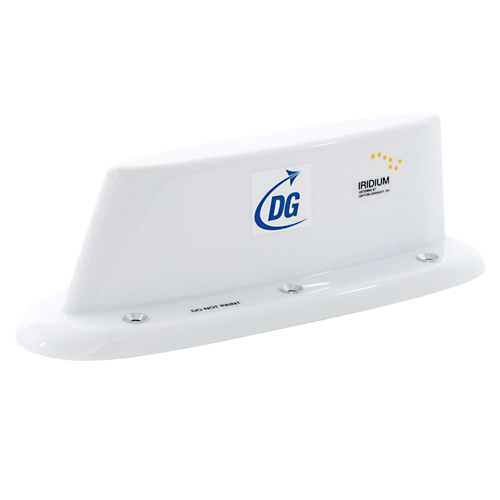

Iridium and GPS Antenna
Product Description
The L10-806 Iridium/GPS antenna is a dual-function, dual-connector, short blade that provides excellent coverage in both the Iridium and GPS-L1 bands. The integrated LNA for the GPS band offers a low noise figure and high gain. Additional filtering yields an effective out-of-band rejection and reduces the risk of saturation by interfering signals.
Features
- Iridium/GPS Antenna
- Dual function, dual connector antenna provides excellent operation in both Iridium and GPS L1 bands
- Integrated LNA for the GPS band offers a low noise figure and high gain
- Additional filtering results in effective out-of-band rejection and reduces the risk of saturation by interfering signals
- DC grounding and lighting protection ensure the antenna's operation in intended flight condition
Specifications
Weight:
1.2 lbs
Height:
3.084 in
Type:
Blade
Sub-Type:
Iridium, GPS
Function:
Navigation
Frequency Range:
1616 - 1626.5 MHz, 1575.42±10 MHz
Polarization:
RHC
Impedance:
50 Ohms
Connector:
TNC
Color:
White
Speed Rating:
600 Knots
Product Codes
- Mfr Part No:L10-806
- EDMO #:L10-806
- Brand:DAYTON GRANGER
