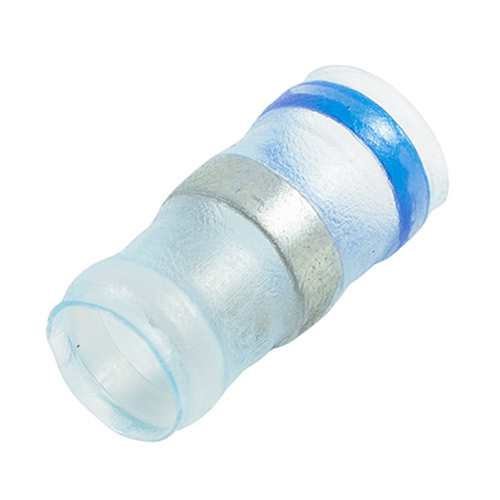

L-C Immersion Resistant Solder Sleeve | 0.220 – 0.440in (ØD4), 125°C

L-C-6

SUMITOMO

CALL FOR PRICING
In Stock
EDMO#L-C-6
MFR#STS L-C-6

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

L-C series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.


This L-C solder sleeve terminal (EDMO# L-C-6) fits wire diameters of 0.220 – 0.440 inch (ØD4). No lead or braid. *see Datasheet

Features

  • Mil-Spec. AS83519/1 & NAS 1745 Qualified
  • Immersion Resistant
  • 125°C Operating Temperature
  • 183°C Solder Melt Temperature
  • Convection installation
  • Sn63 (RMA flux)

Specifications

Cable Size:
ØD4: 0.220 – 0.440 in (see datasheet)

Operating Temperature:
-55°C to 125°C

Solder Melt Temperature:
145°C

Solder Type:
Sn63 (63% tin ,37% lead)

Temperature Indicating Paint (TI):
yes

Jacket Type:
Radiation Cross-linked, Modified Polyvinylidene fluoride

Lead Wire Included:
No

Braid Included:
No

Environmental Seals:
Yes

RoHS Compliant:
No

Flux:
TYPE RMA flux ROL1 per ANSI-J-STD-004

Product Codes

  • Mfr Part No:STS L-C-6
  • EDMO #:L-C-6
  • Brand:SUMITOMO
  • Category:Electrical Interconnect
