Product Description

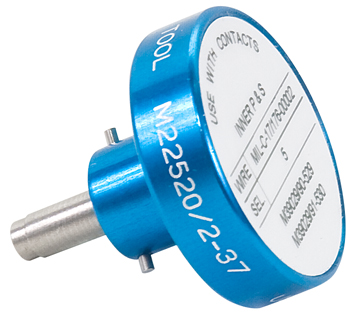

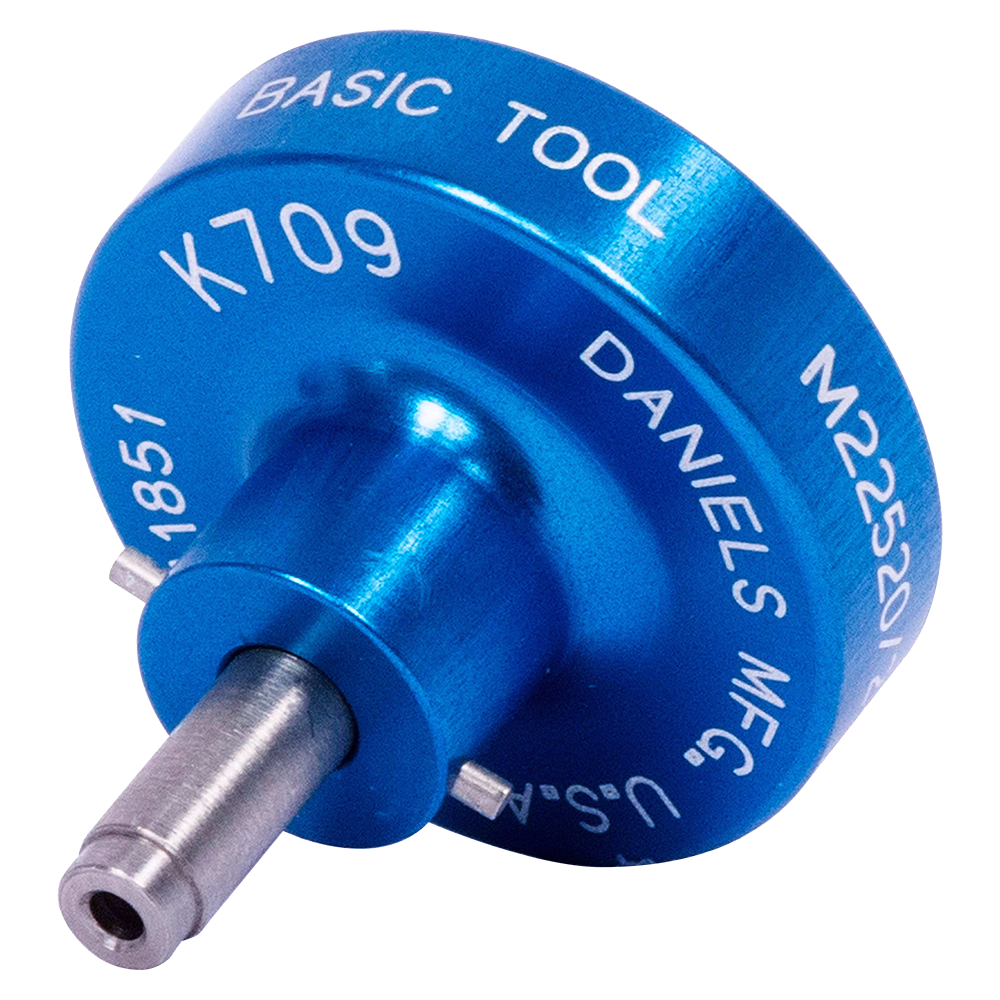

This positioner (EDMO# K709) is used with the AFM8, AFME8B, WA22 crimp tools and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.

Features

Contacts Serviced:

  • M39029/90-529 Crimp Contact, Size 8 Pin

  • M39029/91-530 Crimp Contact, Size 8 Socket

  • M39029/113-625 Crimp Contact, Size 8 Pin

  • M39029/114-628 Crimp Contact, Size 8 Socket

  • M39029/119-660 Crimp Contact, Size 8 Pin

  • M39029/119-686 Crimp Contact, Size 8 Pin

  • M39029/120-661 Crimp Contact, Size 8 Socket

  • M39029/120-687 Crimp Contact, Size 8 Socket

Compatible Cables:

  • MIL-C-17/176-00002 Twinax

  • AS6070/1 Quadrax

Compatible Tools:

  • AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool

  • AFME8B Battery Crimp Tool

  • WA22 Pneumatic Crimp Tool

Specifications

Dimensions:
0.935 x 0.930 in

Locator Hole Dimensions:
0.052 in

Contact Size:
8 AWG

Cable Types:
MIL-C-17/176-00002 Twinax, AS6070/1 Quadrax

Product Codes

  • Mfr Part No:K709
  • EDMO #:K709
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • ECCN:EAR99
  • ECCN:EAR99
  • SCHEDULE B CODE:8203.20.6060
  • SCHEDULE B CODE:8203.20.6060
