K532-1 Positioner | Daniels Crimp Tools

K532-1

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#K532-1
MFR#M22520/2-35

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

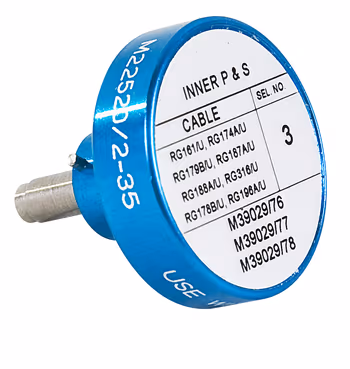

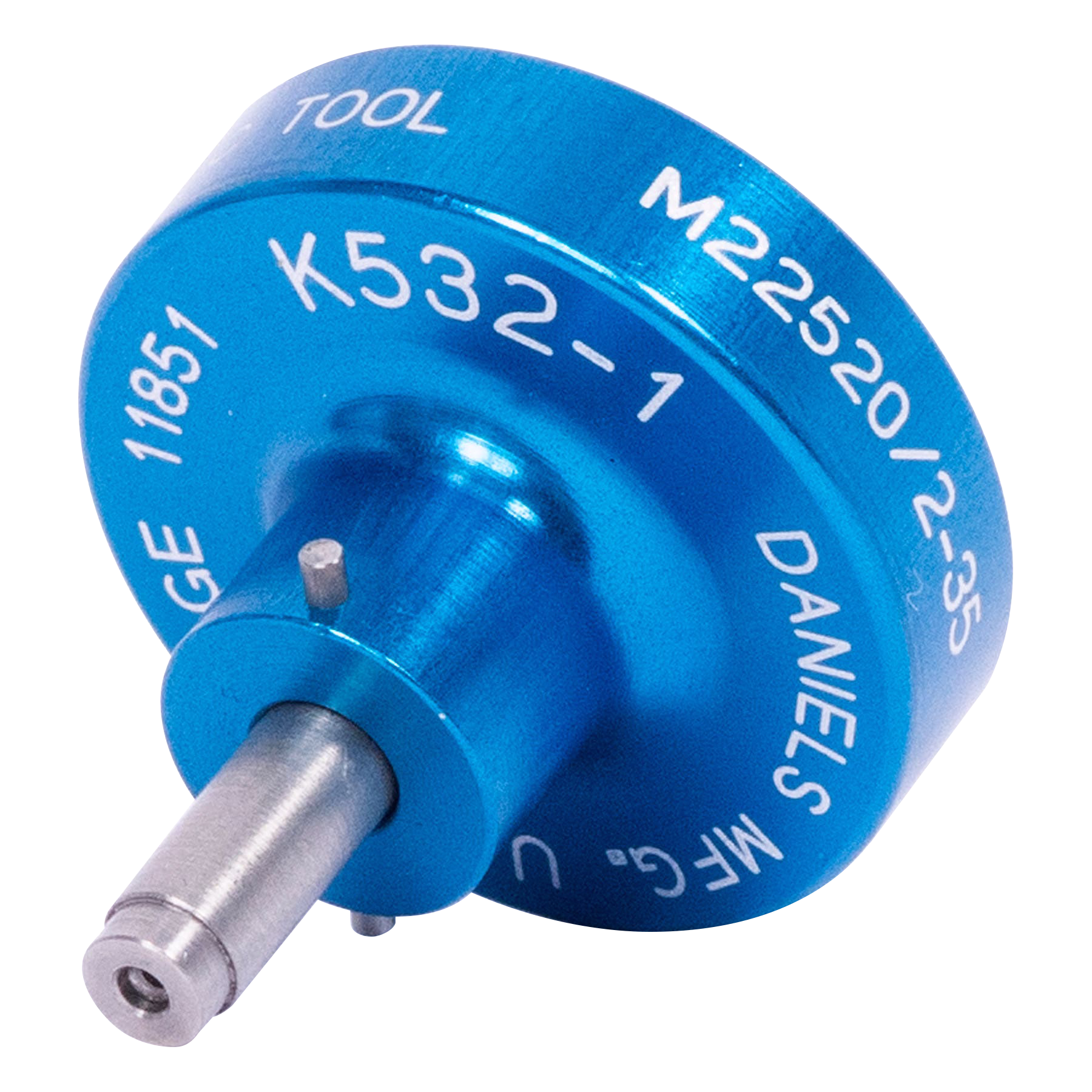

This positioner (EDMO# K532-1) is used with the AFM8, AFME8B, WA22 crimp tools and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.

Features

Contacts Serviced:

  • M39029/76-424 thru -427 Size 16 Pins For RG174, RG178, RG179, and RG316 Coaxial Cables

  • M39029/77-428 thru -431 Size 16 Sockets For RG174, RG178, RG179, and RG316 Coaxial Cables

  • M39029/78-432 thru -435 Size 16 Sockets For RG174, RG178, RG179, and RG316 Coaxial Cables

Compatible Tools:

  • AFM8 Hand Crimp Tool Frame

  • WA22 Pneumatic Crimp Tool Frame

  • AFME8B Battery Crimp Tool Frame

Specifications

Dimensions:
0.935 x 0.930 in

Locator Hole Dimensions:
0.033 in

Cable Types:
RG174/U, RG178/U, RG179/U, RG316/U

Product Codes

  • Mfr Part No:M22520/2-35
  • EDMO #:K532-1
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • ECCN:EAR99
  • SCHEDULE B CODE:0000.00.0000
