K323 Positioner | Daniels Crimp Tools

K323

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#K323
MFR#K323

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

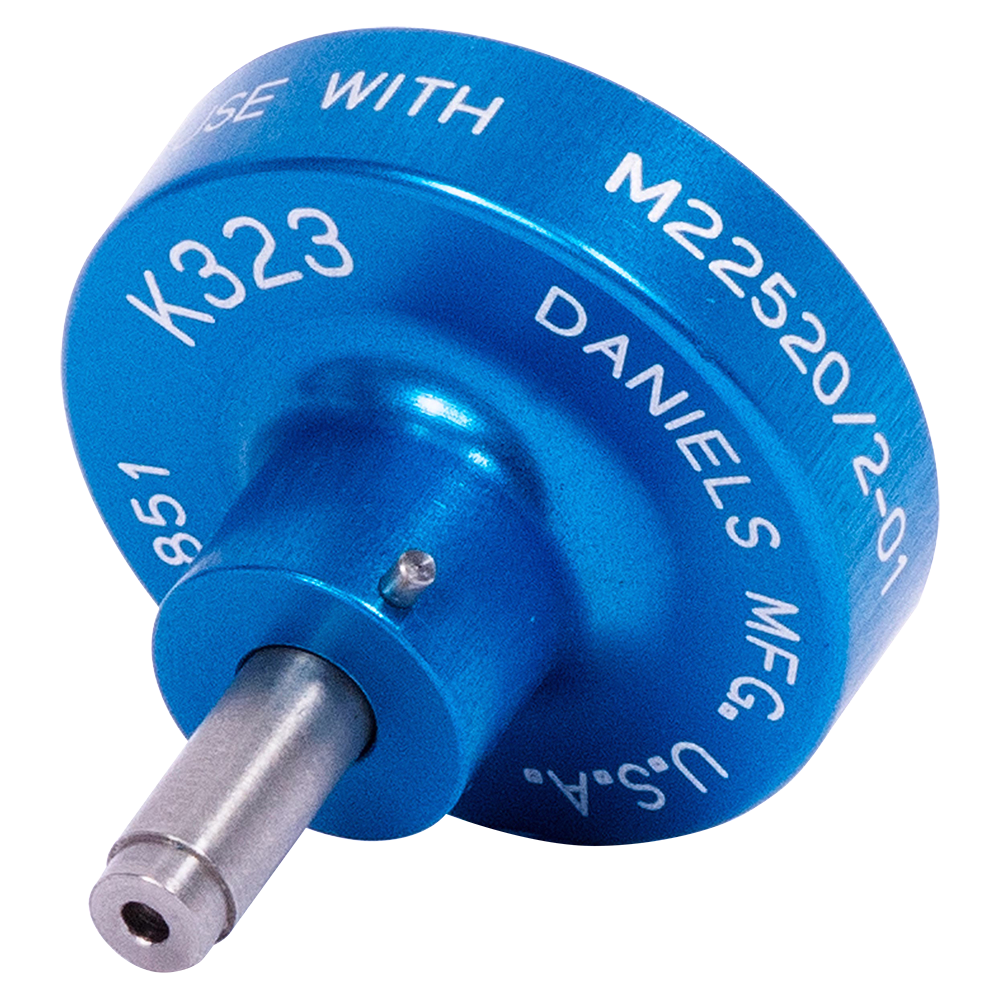

This positioner (EDMO# K323) is used with the AFM8, AFME8B, WA22 crimp tools and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.

Features

Contacts Serviced:

  • M39029/27-210, -402 thru -408 Coaxial Socket, 12 AWG

  • M39029/28-211, -409 thru -415 Coaxial Pin, 12 AWG

  • M39029/75-416 thru -423 Coaxial Socket, 12 AWG

Compatible Tools:

  • AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool

  • AFME8B Battery Crimp Tool

  • WA22 Pneumatic Crimp Tool

Specifications

Dimensions:
0.935 x 0.930 in

Locator Hole Dimensions:
0.036 in

Contact Size:
12 AWG

Cable Types:
RG179B/U, RG187A/U, RG180B/U, RG195A/U, RG161/U, RG174A/U, RG188A/U, RG316/U

Product Codes

  • Mfr Part No:K323
  • EDMO #:K323
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • ECCN:EAR99
  • ECCN:EAR99
  • SCHEDULE B CODE:8203.20.6060
  • SCHEDULE B CODE:8203.20.6060
