K1598 Positioner | Daniels Crimp Tools

K1598

DANIELS MFG

CALL FOR PRICING
Available To Order
EDMO#K1598
MFR#K1598

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

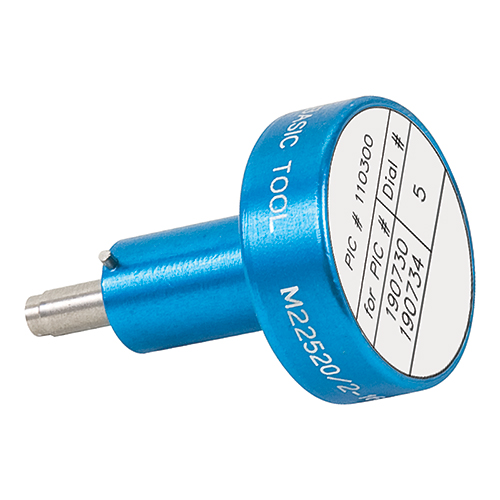

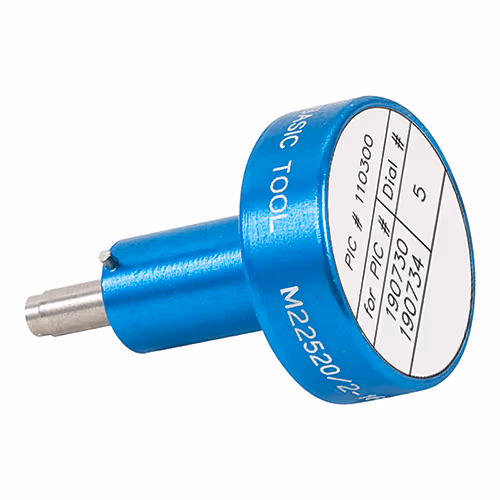

This positioner (EDMO# K1598) is used with the AFM8, AFME8B, WA22 crimp tools and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.

Features

Contacts Serviced:

  • 190730 ARINC Size 16 Sockets
  • 190734 M39029 Size 16 Sockets

Compatible Tools:

  • AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool
  • AFME8B Battery Crimp Tool
  • WA22 Pneumatic Crimp Tool

Specifications

Dimensions:
0.93 x 1.36 in

Locator Hole Dimensions:
0.063 in

Contact Size & Type:
Size 16 Socket (190730, 190734)

Product Codes

  • Mfr Part No:K1598
  • EDMO #:K1598
  • Brand:DANIELS MFG
  • Category:Tools & Cases
