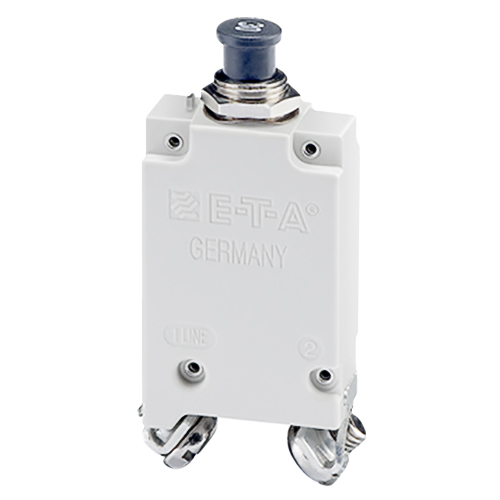

K14LN2 Series Circuit Breaker | 50 Amp Rating, Push/Pull Actuator

E-T-A

Call For Pricing

In stock

EDMO # K14LN2-50

MFR Part # 413-K14-LN2-50A

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The K14LN2 series high performance, thermal, single-pole, circuit breaker has a tease-free, trip-free, snap action mechanism with push-pull, on-off manual actuation. The tripped-off position is clearly shown by a colored band.

This K14LN2 series circuit breaker (EDMO# K14LN2-50) is rated for 50 amps.

Includes hardware.

Features

50 Amp current rating @ 28 VDC
Designed for extra low voltage wiring applications
Suitable for all types of land, sea, and air vehicles as well as defense equipment and battery powered machines.

Also Purchased

Specifications

Weight:

65 grams (approx.)
Current Rating:

50 amps
Voltage Rating:

28 VDC
Typical Life:

2,000 operations
Ambient Temperature:

-55°C to 75°C (-67°F to 167°F)
Insulation Resistance:

>100 MΩ (500 VDC)
Interrupting Capacity:

6,000A
Degree of Protection (IEC 60529/DIN 40050):

Operating area IP40 Terminal area IP00
Vibration:

10 g (56-500 Hz), ± 0.76 mm (10-55 Hz) to VG 95210, sheet 19, MIL-STD-202, meth. 204, IEC 60068-2-6, test Fc
Shock:

50 g (11 ms) To VG 95210, sheet 28, MIL-STD-202, meth. 213, IEC 60068-2-27, test Ea
Corrosion:

96 hours at 5 % salt mist, to VG 95210, sheet 2, MIL-STD-202, meth. 101, IEC 60068-2-11, test Ka
Humidity:

240 hours at 95 % RH To VG 95210, sheet 7, MIL-STD-202, meth. 106, IEC 60068-2-3, test Ca
