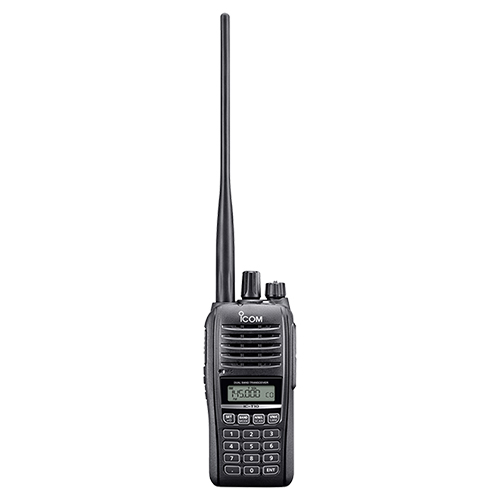

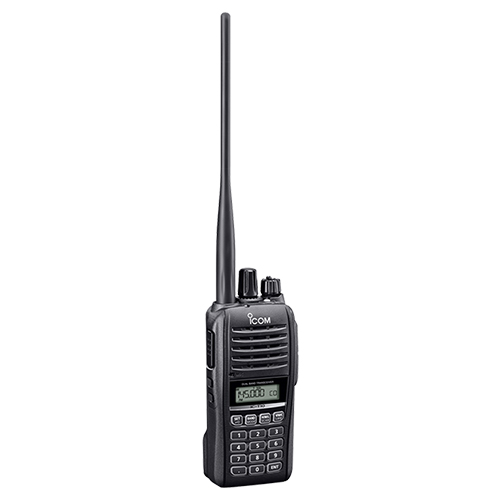

IC-T10 Dual Band FM Transceiver | VHF/UHF, TX: 144–148, 430–450 MHz, RX: 136–174, 400–479 MHz, FM Broadcast: 88–108 MHz
Product Description
The IC-T10 is a simple yet powerful dual-band handheld designed with a high waterproof rating, ready for whatever field activities lie ahead. Featuring 5W RF output on 144 and 430 MHz and an IP67 dust-tight and waterproof design, it can handle tough conditions with ease. Enjoy loud and clear audio from the 1500 mW speaker, or pair with the optional HM-222HLWP loud audio speaker-mic for added functionality. Quickly access the calling channel with the top-mounted home button and take advantage of the built-in FM broadcast receiver for versatile listening. With up to 11 hours of operating time, this handheld is as reliable as it is rugged.
Features
- DC power operation with optional AD-149H
- Free CS-T10 downloadable programming software
- Built-in CTCSS/DTCS for repeater operation
- Total of 208 memory channels with 6 character channel name
- 16 DTMF autodial memories
- Priority, Program, Memory, Skip, and Tone Scan
- Direct-conversion system eliminates IF stages
Supplied Accessories:
- BP-280 Battery Pack
- FA-S270C Antenna
- MB-133 Belt Clip
- BC-213 Rapid Charger
- AC Adapter (BC-242 or BC-123SA/SE)
Specifications
Weight:
9.8 oz (278 g)
Dimensions:
2.1 × 4.4 × 1.2 in (52.2 × 111.8 × 30.3 mm)
Frequency Coverage:
TX: 144–148, 430–450 MHz
RX: 136–174, 400–479 MHz
FM Broadcast: 88–108 MHz
Number of Channels:
208 Channels
Type of Emission:
F2D, F3E (FM)
Frequency Stability:
±2.5 ppm (–20°C to +60°C on the basis of 25°C)
Power Supply Requirement:
7.2 V DC nominal; External DC power: 10–16 V DC (with AD-149H)
Current Drain:
Tx High: Less than 2.5 A
Rx Max Audio: Less than 600 mA
Antenna Impedance:
50 Ω (SMA)
Operating Temperature:
–4°F to +140°F (–20°C to +60°C)
Product Codes
- Mfr Part No:IC-T10
- EDMO #:IC-T10
- Brand:ICOM AMERICA
