IC-R15 Multifunctional Wideband Receiver | 76 – 500 MHz, AM, FM, WFM
Product Description

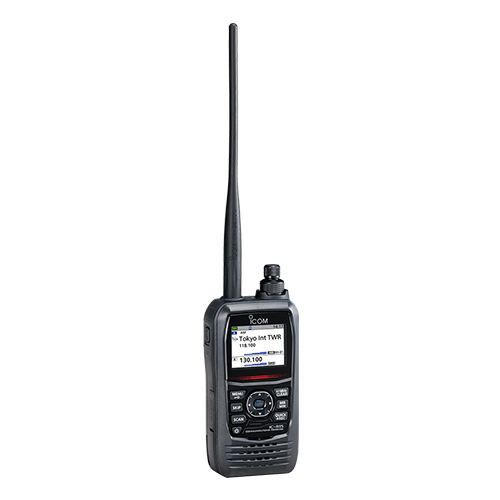

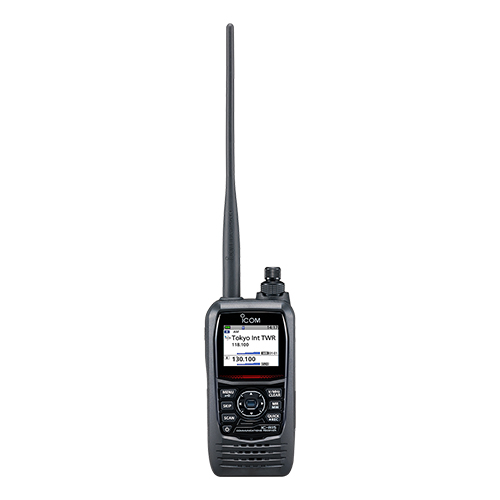

The IC-R15 is a multifunctional wideband receiver designed for both beginners and enthusiasts. It covers a frequency range of 88 MHz to 500 MHz, allowing you to receive signals from a variety of sources, including aviation, railway, marine, and amateur radio broadcasting in AM, FM, and WFM modes. The IC-R15 features a dual-watch function that enables simultaneous reception of two signals, so you never miss important transmissions. With its large, easy-to-read color LCD and intuitive graphical icon menu, operating the IC-R15 is smooth and straightforward.
Built with IPX7 waterproofing and durable construction, the IC-R15 is ready for outdoor use in any environment. It also includes a built-in recording function that saves received audio to a microSD card, complete with frequency, mode, and time stamps. The high-speed scanning capability of 150 channels per second ensures quick signal capture, while the Voice Squelch Control (VSC) helps filter out unwanted noise, allowing you to focus on voice communications. With a USB Type-C™ terminal for easy charging, the IC-R15 is a versatile and reliable tool for all your radio signal needs.
Features
- Wideband Reception
- Dual-Watch Function
- High-Speed Channel Scanning
- USB/SD Storage
- Power Save Function
- Auto Power OFF Function
- Battery Level Display Function
- Key Lock Function
- Monitor Function (Cancelling Squelch)
- CTCSS/DTCS with Reverse Tone Squelch Function
- Frequency Shift Function
- Auto Squelch Function
- Selectable Tuning Steps (13 Types)
- Squelch Monitor Function
- RF Attenuator
- ANL (Automatic Noise Limiter) Function
- Temporary Skip Function
Specifications
Weight:
9.17 oz (260 g)
Dimensions:
2.28 × 4.57 × 1.33 in (58 × 116 × 33.8 mm)
Operation Time:
13 hours
Operating Temperature:
-4° to 140°F (-20° to 60°C)
Frequency Coverage:
A Band / B Band: 108.000 – 500.000 MHz
BC Band: 88.000 – 108.000 MHz
Mode:
AM, FM, WFM (F3E, A3E)
Antenna Impedance:
50Ω (SMA)
Receiving System:
Double conversion superheterodyne
Intermediate Frequency:
A Band: 58.050 MHz/450 kHz (1st IF/2nd IF)
B Band: 57.150 MHz/450 kHz (1st IF/2nd IF)
Number of Memory Channels:
2000 regular memory channels, 200 auto memory channels, 25 scan edges, 100 skip channels
AM Sensitivity(10 dB S/N : 1 kHz Dev/30 % Mod):
108.000 – 142.000 MHz: Less than 0 dBμ
222.000 – 249.995 MHz: Less than 0 dBμ
250.000 – 299.995 MHz: Less than 5 dBμ
300.000 – 400.000 MHz: Less than 3 dBμ
FM Sensitivity(12 dB SINAD : 1 kHz/3.5 kHz Dev):
108.000 – 249.995 MHz: Less than -8 dBμ
250.000 – 299.995 MHz: Less than -3 dBμ
300.000 – 400.000 MHz: Less than -5 dBμ
WFM Sensitivity(12 dB SINAD : 1 kHz / 52.5 kHz Dev):
76.000 – 108.000 MHz: Less than 0 dBμ
Selectivity:
AM / FM: More than 50 dB
WFM: More than 35 dB
Tuning Steps:
5/6.25/8.33/10/12.5/15/20/25/30/50/100/125/200 kHz
*On 108.000 – 136.991 MHz, only 8.33 kHz or 25.0 kHz
Battery Requirement:
3.6 VDC (BP-287)
External Power Supply:
5.0 VDC ± 5 % (USB charging)
Current Drain (at 3.6 VDC):
Rated audio: 380 mA typical
Standby: 150 mA typical
Power save: 80 mA typical (FM mode, Single display mode, Record function off, GPS off, Backlight off)
Audio Output Power (at 3.6 VDC):
Internal Speaker: More than 400 mW (8Ω, 10% distortion)
External Speaker: More than 120 mW (8Ω, 10% distortion)
Product Codes
- Mfr Part No:IC-R15
- EDMO #:IC-R15
- Brand:ICOM AMERICA
- Category:Handheld Radios
