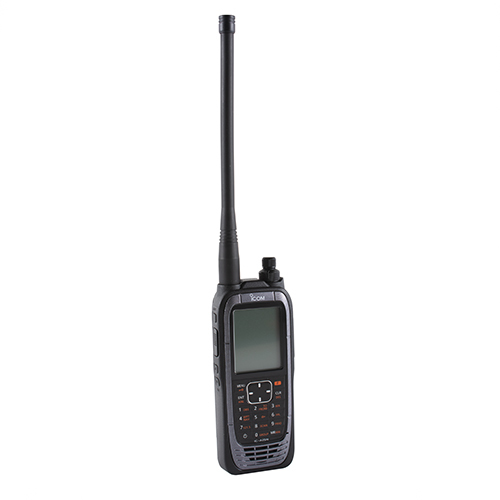

IC-A25N VHF Airband Handheld | Comm & Nav, GPS, Bluetooth, Euro Plug

ICOM AMERICA

CALL FOR PRICING
Available To Order
EDMO#IC-A25N220
MFR#IC-A25N220

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The IC-A25 Series Airband Handheld Transceivers feature a six-watt, high power transmitter that expands communication coverage for enhanced safety. An IP57 waterproof rating allows these radios to continue to operate even in severe weather. A large 2350 mAh Li-ion battery provides operation up to 10.5 hours.

Built-in GPS and Bluetooth® redefined navigation in the A25N. Design flight plans with an Android™ or iOS™ device and import them into the A25 with the Bluetooth® feature. While using GPS, the waypoint NAV will guide pilots to their destination. Up to 10 flight plans and 300 waypoints can be stored in the A25. Other navigational features, like VOR indicators, can help keep a pilot’s heading precise and alert them if they divert from course. All these functions and more increase safety up in the air.

The easy-to-use interface combined with a large 2.3-inch LCD display offers stress-free programming and in-flight operation. Day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark. Frequently used functions are directly assigned to the 10-keypad allowing quick access to common functions while the enlarged, flat sheet keypad offers smooth and swift operation.

This version (EDMO# IC-A25N220) is a communications and navigation, European style handheld transceiver with a 220V power plug. Also includes an antenna, battery pack, belt clip, headset adapter, hand strap, and owners manual.

Features

Includes:

  • Li-ion Battery pack BP-288
  • BC-224 and BC-123SA Rapid charger
  • Headset adapter, OPC-2379
  • Antenna, FA-B02AR
  • Belt clip, MB-133
  • Hand strap
  • Owners manual

Navigation/Bluetooth Features:

  • Built-in GPS with simplified waypoint NAV feature
  • Direct-to NAV or Flight-plan NAV function
  • Built-in Bluetooth® allows for convenient, hands-free operation
  • Create flight plans using the Flight Plans app for Android™ and iOS™ and import them to the IC-A25N via Bluetooth
  • Class-leading 6-watt, high power, RF output expands communication coverage

Standard Features:

  • Large 2.3-inch LCD display
  • Day mode allows pilots to read the display in direct sunlight
  • Night mode makes reading at night easy
  • “Flip-Flop” channel recall stores the last 10 channels used
  • Quick recall simply by using the directional keys or the channel knob
  • Intelligent battery pack allows on-screen battery status
  • 10.5 hours of operating time with its 2350 mAh capacity battery
  • IP57 dust-protection and waterproof construction
  • Operates with 6xAA alkaline batteries with the BP-289 battery case
  • BNC antenna
  • 121.5 MHz emergency key
  • Weather channels
  • Priority watch
  • VFO scan, memory-channel scan, and priority scan
  • ANL (Auto Noise Limiter) for noise reduction
  • Side tone function
  • Internal VOX capability
  • 300 memory channels (in 15 memory groups) with 12 character names
  • 8.33 kHz channel spacing

Specifications

Weight:
12.0 oz (340 g), with BP-288

Dimensions (not including projections):
2.3 × 5.8 × 1.3 in (58.9 × 148.4 × 31.8 mm)

Frequency Range (NAV and COM channels):
Tx: 118.000 to 136.992 MHz
Rx: 108.000 to 136.992 MHz (IC-A25N)
Rx (weather): 161.650 to 163.275  MHz

Memory Channels:
300 channels, 15 groups

Channel Spacing:
25/8.33 kHz

Type of Emission:
6K00A3E, 5K60A3E, 16K0G3E (Weather)

Power Supply Requirement:
7.2V DC (BP-288), 11.0V DC (external DC jack)

Current Drain (approximately):
Tx high: <1.8A
Rx max. audio/stand-by: <500mA /90mA typical

Antenna Impedance:
50Ω

Operating Temperature:
–10°C to 60°C (14°F to 140°F)

TRANSMITTER
Output Power:
6.0/1.8 W typical (PEP/carrier), at 7.2V DC

Audio Harmonic Distortion:
<10%, at 60% modulation

Hum and Noise Ratio:
>35 dB

Spurious Emissions:
>46 dB
(Exclude fc±62.5 kHz for AM mode)
(Exclude fc±20.825 kHz for AM-N mode)

Frequency Stability:
±0.4 kHz

RECEIVER
Intermediate Frequencies (1st/2nd):
46.35 MHz/450 kHz

Sensitivity:
NAV/COM: <0 dBµ (NAV/COM, 6 dB S/N)
WX: <-8 dBµ (12 dB SINAD)

Squelch Sensitivity:
<0 dBμ (AM), <–5 dBμ (FM), at threshold

Spurious Response:
>60 dB (AM), >30 dB (FM)

Hum and Noise:
>35 dB (at 30% modulation)

Audio Output Power:
>350 mW typical (8Ω load/60% Mod. at 10% distortion)

External Speaker Connector:
3-conductor 3.5 mm (1/8 in)/8Ω

Dust and Water:
IP57 (dust-protection and waterproof* protection)
* One meter depth for 30 minutes

Product Codes

  • Mfr Part No:IC-A25N220
  • EDMO #:IC-A25N220
  • Brand:ICOM AMERICA
  • Category:Handheld Radios
