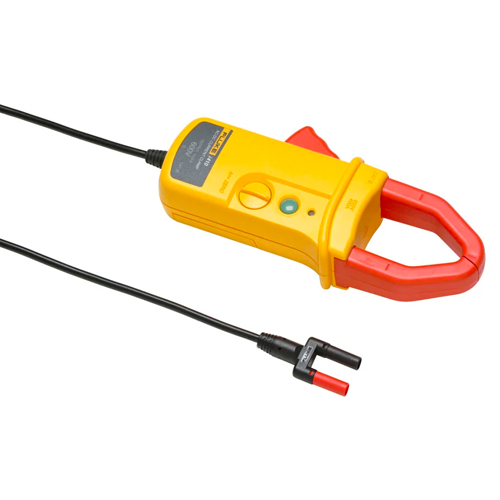

Fluke i410 AC/DC Current Clamp
Product Description
The Fluke i410 AC/DC current clamp expands the functionality of digital multimeters and measures up to 400 amps for both AC and DC current. The Large clamp claw gives users access to difficult to reach areas.
Features
- Battery-powered Hall-effect probe measures 1A to 400 A
- 1mV/Amp output guarantees easy reading on your meter
- Take accurate current readings without breaking the circuit
- Maximum conductor Ø 32 mm
- CAT III 600 V safety rating
- One year warranty
Specifications
Measurement type:
Hall sensor
Nominal current range:
400 A, AC/DC
Continuous current range:
1 A - 400 A AC/DC
Maximum non-destructive current:
400 A
Lowest measurable current:
0.5 A
Basic accuracy:
3.5% + 0.5 A (% reading + floorspec)
Useable frequency:
DC - 3 kHz
Output level(s):
1 mV/A
Warranty:
1 year
Battery life:
9 V, 60 h
Maximum conductor diameter:
30 mm, 2 x 25 mm
Output cable length:
1.6 m
Shrouded banana plugs:
Yes
Safety:
CAT III, 600 V
Maximum voltage:
600 V
Product Codes
- Mfr Part No:I410
- EDMO #:I-410
- Brand:FLUKE
- Category:Wire & Cable Testers
