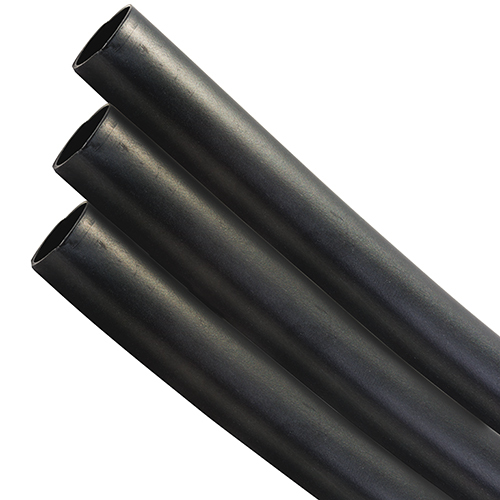

HW3X Polyolefin Heat Shrink | 3-inch, Black, With Sealant
Product Description
HW3X polyolefin heat shrink is self-sealing and offers excellent protection under adverse conditions. The standard HW3X heat shrink is provided with sealant for waterproofing and protection in underwater and underground conditions. HW3X tubing sealant can be made lead, steel, aluminum, copper, and all standard plastic and elastomeric insulating materials.
This HW3X heat shrink tubing (EDMO# HW3X30S48B) has a three-inch diameter, includes sealant, and ships in 48-inches in lengths.
Features
- Polymer tubing has excellent insulating, abrasion-resisting, and strain-relief properties
- Seals over lead, steel, aluminum, copper and all standard plastic and elastomeric insulating
- available with or without sealant
- Applicable Specifications: SAE-AMS-DTL-23053/15, Class 1*
- Operating Temperature Range: -67°F (-55°C) to 194°F (90°C)
- Shrink Ratio: 3 to 1
- Shrink Temperature: 250°F (121°C)
- Recommended Heat Gun: 500°F (260°C)
- Standard Colors: Black
Specifications
Minimum Expanded I.D.:
3.000 in (76.20 mm)
Maximum Recovered I.D.:
1.250 in (31.75 mm)
Recovered Wall Thickness:
0.155 in (3.94 mm)
Product Codes
- Mfr Part No:HW3X-30-S-48 BLACK
- EDMO #:HW3X30S48B
- Brand:ICO RALLY
- Category:Wire, Cable & Accessories
