Hanger Networked Re-Radiating Kit | SMA Connectors, 220V Source Input

Product Description

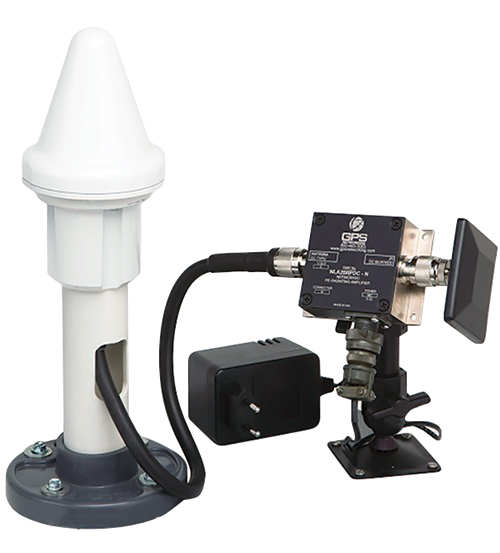

This GPS re-radiating kit is designed for distributing GPS signals inside a hanger or large spaces without obstruction. GPS L1 signals is received by the include roof antenna, amplified, and then re-radiated indoors using the passive antenna. This hanger GPS re-radiating system consists of an active roof-top antenna, a passive re-radiating antenna, and amplifier with external power supply to power the entire system. In the standard network configuration, the amplifier output (J1) is DC blocked while the antenna port provides DC voltage to power the roof antenna.

This hanger GPS re-radiating kit (EDMO# HNRRKIT-2S) features SMA-type connectors, operates from a 220-volt power source.

DOES NOT INCLUDE: WRUMT amplifier mount, RAMB-L1 antenna mounting bracket, LMR400/1 braided coax cable, or (2) RSA3000-I SMA male crimp/coax connector. These parts are recommended and sold separately.

This product is only to be used for testing GNSS equipment/systems for the purpose of product development or fabrication.

Per the latest FCC guidance, the following use cases are NOT allowed:

• Fire Stations & First Responders
• Aircraft Repair and Maintenance
• Truck Repair and Maintenance
• Any other usages which could be considered "maintenance".

An FCC Experimental Broadcast license is required to operate this device, with the following exceptions:

• Device is operated in a shielded environment, such as an anechoic chamber.
• Device is operated in conjunction with a reradiating hood.
• Device is operated by federal or DoD personnel with the approval of the local spectrum manager.

Specifications

• Roof Antenna:
• Weight:
  6.6 oz
• Dimensions:
  3.54 x 6.6 in
• Operating Temperature:
  -45°C to 85°Cd
• Frequency:
  1.575 GHz, typical
• Gain:
  38 dB, typical (30 dB, min.)
• Bandwidth:
  10 MHz, typical
• Filtering:
  -60 dB, typical
• Noise Figure:
  1.8 dB
• Output SWR:
  1.5:1, max.
• Characteristic Impedance:
  50Ω
• Req. DC Input.:
  4.5 VDC — 5.5 VDC (5.0 VDC, typical)
• Current Draw:
  20 mA, typical (27 mA, max.)
• Re-Radiating Antenna
• Weight:
  1.7 oz (48 g)
• Dimensions:
  0.67 x 2.6 x 2.6 in
• Operating Temperature:
  -40°C to 85°C
• Frequency:
  1.572 MHz — 1.578 MHz (1.575 MHz, typical)
• Axial Ratio:
  3 dB
• Peak Gain:
  4 dBic
• Bandwidth:
  20 MHz, min.
• Input SWR:
  1.5:1, max.
• Characteristic Impedance:
  50Ω
• Re-Radiating Amplifier:
• Weight:
  9.6 oz (272 g), max.
• Dimensions:
  1.3 x 3.25 x 2.5 in, max. (not including connectors)
• Operating Temperature:
  -57°C to 87°C
• Frequency Response:
  1.1 GHz — 1.7 GHz
• Characteristic Impedance:
  50Ω
• Req. DC Input V.:
  3.3 VDC — 15 VDC
• Current Draw:
  36 mA, typical (40 mA, max.)
• Gain:
  29 dB — 31 dB (30 dB, typical)
• Input SWR:
  2.0:1, max.
• Output SWR:
  2.0:1, max. (1.8, typical)
• Noise Figure:
  L1: 2.0 dB L2: 4.25 dB
• Band Gain Flatness:
  0.5 dB, typical (1.0 dB, max.)
• Group Delay:
  L1: 1.5 ns L2: 2.1 ns
• Reverse Isolation:
  L1: -55 dB L2: -60 dB
• Input P1dB:
  L1: -21.5 dBm L2: -23 dBm
• 3rd Order Intercept:
  -13 dBm
• Source Voltage Option:
  220VAC Transformer (ITA Type C Wall Mount)
• Connector Option:
  SMA connector

Product Codes

• Mfr Part No
  HNRRKIT-220-SMA
