H-ML Immersion Resistant Solder Sleeve | 0.070 – 0.235in, 22 AWG Lead, 150°C

Product Description

H-ML series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

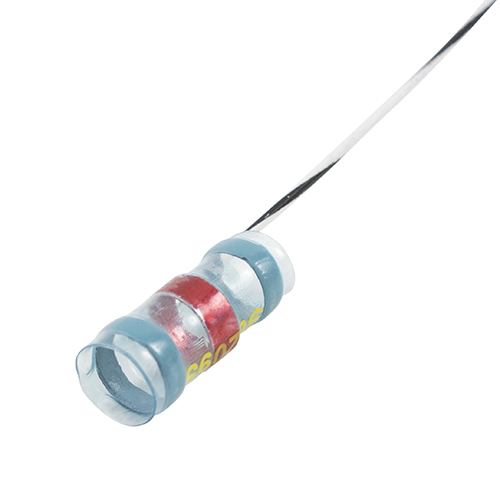

This H-ML solder sleeve terminal (EDMO# HML-9) fits wire diameters of 0.070 – 0.235 inch (øD4). Includes 22 AWG wire lead without braid. *see Datasheet

Specifications

• Cable Size:
  ØD4: 0.070 – 0.235 in (see datasheet)
• Operating Temperature:
  -55°C to 150°C
• Solder Melt Temperature:
  183°C
• Solder Type:
  Sn63 (63% tin ,37% lead)
• Temperature Indicating Paint (TI):
  yes
• Jacket Type:
  Radiation cross-linked, modified polyvinylidene fluoride
• Lead Wire Include:
  Yes
• Braid Included:
  No
• Environmental Seals:
  Yes
• RoHS Compliant:
  No
• Flux:
  RMA

Product Codes

• Mfr Part No
  HML-9
• MIL SPEC
  M83519/2-9
• ECCN
  EAR99
• MIL SPEC
  M83519/2-9
• NSN
  5940-01-135-7087
• SAE
  AS83519/2-9
• SCHEDULE B CODE
  8536695050

Documentation

• H-ML solder sleeve datasheet
