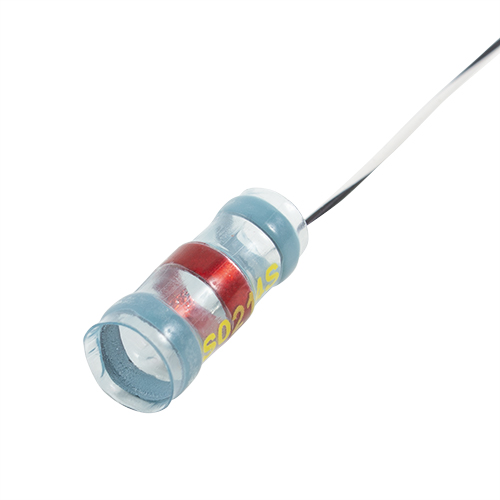

H-ML Immersion Resistant Solder Sleeve | 0.070 – 0.235in, 24 AWG Lead, 150°C
Product Description
H-ML series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.
This H-ML solder sleeve terminal (EDMO# HML-14) fits wire diameters of 0.070 – 0.235 inch (øD4).Includes 24AWG wire lead without braid. *see Datasheet
Features
- Includes 24 AWG pre-installed wire lead per MIL-W-22759/32-24-90
- Mil-Spec. AS83519/2 Qualified
- Immersion Resistant
- 150°C Operating Temperature
- 183°C Solder Melt Temperature
- Convection or infrared heated installation
- Sn63 (RMA flux)
Specifications
Cable Size:
ØD4: 0.070 – 0.235 in (see datasheet)
Operating Temperature:
-55°C to 150°C
Solder Melt Temperature:
183°C
Solder Type:
Sn63 (63% tin ,37% lead)
Temperature Indicating Paint (TI):
Yes
Jacket Type:
Radiation cross-linked, modified polyvinylidene fluoride
Lead Wire Include:
Yes
Braid Included:
No
Environmental Seals:
Yes
RoHS Compliant:
No
Flux:
RMA
Product Codes
- Mfr Part No:STS HML-14
- EDMO #:HML-14
- Brand:SUMITOMO
- Category:Wire, Cable & Accessories
