High Isolated Amplified Loaded DC Blocked Splitter | 1 input, 4 output, TNC connector

Product Description

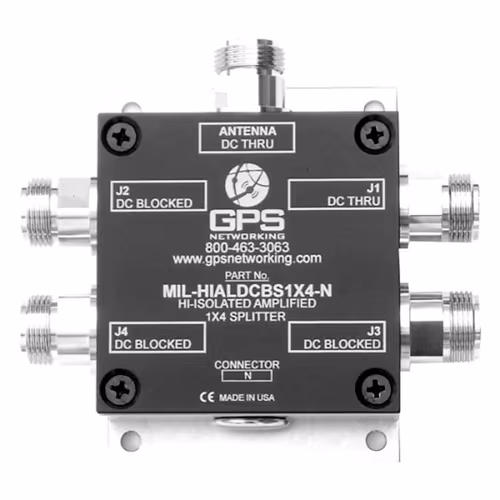

This Military Qualified High Isolated Amplified Loaded DC Blocked Splitter 1X4 (MIL-HIALDCBS1X4) is a high isolated, active, one input, four output RF splitter that splits signals from 1.1 GHz to 1.7 GHz. This equipment is designed to amplify and split signals within the L-band to provide multiple devices with the signal from a single antenna. Each output port (J1-J4) is isolated from external signals to prevent interference. In the standard configuration, the J1 port will pass DC voltage from a connected device and pass this power to the antenna or other devices upline from the splitter via the antenna port. The other ports (J2-J4) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw which prevents antenna alarm faults. All MIL-Spec splitters are qualified to the rigorous MIL-STD 810F environmental & MIL-STD-461F EMI standards. Custom gain configuration, DC configuration, and connector configuration are available upon request.

Features

Precise Amplitude Balance
Flat Group Delay
High Isolation
Wide Accepted Frequency Range
Efficiently Blocked Ports
Matched Phase Balance
Qualification and Test Reports Available

Specifications

Weight:
11.7 oz (332 g)

Dimensions:
2.5 x 2.5 x 1.29 in

Connector Type:
Female TNC

Number of Connections:
1 Input, 4 Output

Operating Temperature:
-57 to 87°C

Frequency Range:
1.1 GHz (min), 1.7 GHz (max)

Impedance:
50Ω

Input Voltage:
3.3 VDC (min), 15 VDC (max)

Current Draw:
17 mA (typical), 20 mA (max)

Gain:
1.5 dB (min), 3.0 dB (typical), 4.5 dB (max)

Input Standing Wave Ratio:
2.0:1

Output Standing Wave Ratio:
2.0:1

Noise Figure:
L1: 3.6 dB
L2: 6.0 dB

Gain:
0.5 dB (typical), 1.5 dB (max)

Amplitude Balance:
0.5 dB (typical), 1.0 dB (max)

Phase Balance:
2.5 deg (typical), 5.0 deg (max)

Isolation:
40 dB (min), 50 dB (typical)

Group Delay Flatness:
1.0 ns

Input P1Db:
-25 dBm

Product Codes

Mfr Part No:HIALDCBS1X4-TNC
EDMO #:HIALDCBS4
Brand:GPS NETWORKING
