Spectre M Multi-Band Tactical Handheld SDR Transceiver | 30 to 512 MHz, 7 W
Product Description

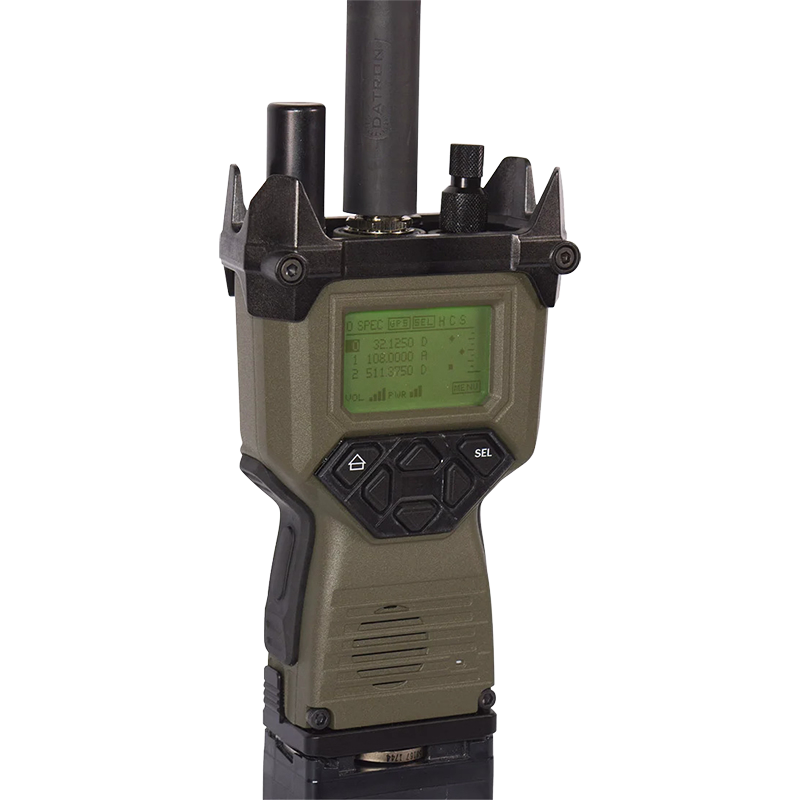

The HH3100 is a high performance, competitively priced, tactical handheld radio that features embedded ECCM, COMSEC (AES-256), and GPS capabilities. It is fully compatible with the Spectre V® family of radios (PRC2100V and HH2100V).
The HH3100 is designed to satisfy the demanding requirements of today’s sophisticated tactical communications arena. It extends frequency coverage up to 512 MHz and adds an AM mode to implement ground-to-air communications.
The HH3100 series radios address today’s most pressing battlefield needs by incorporating a full range of embedded features. Accurate position and time-of-day capability is afforded by the embedded GPS receiver. Frequency hopping and digital encryption waveforms offer a high level of jamming resistance and security.
All of the HH3100 series radios can be used in a network with the PRC2100V and HH2100V, providing base station, vehicle, manpack, handheld, or retransmit capability.
Features
Software Defined Radio (SDR)
30 to 512 MHz (depending on model)
100 programmable memory channels
Rugged (MIL-STD-810G), immersible to 1 meter
Handheld up to 7W
Output power in 3 programmable settings
Ground-to-Air AM operation (depending on model)
Module level Built-In-Test (BITE)
Embedded ECCM and GPS
Embedded COMSEC with Spectre 40, 64, and new AES-256
GPS reporting functions
Spectre Messaging functions
Data and management capability with companion software packages
Miscellaneous Functions:
Programmable Channel Access control
Selective Calling with Call Alert for Unit, Group, and All Level Calling
10 Programmable short messages available
Spectre message alert and viewing of the SM messages on radio screen
GPS reporting by time or PTT
Accessories:
Mobile Mount
Amplifiers for mobile and handheld
Battery chargers
Mobile and handheld antennas
Carrying pouch
Specifications
Weight:
2.65 lbs (1.2 kg) includes battery pack
Dimensions:
10 x 3.4 x 1.9 in (254 x 86 x 48 mm) includes battery pack
Technology:
Software Defined Radio (SDR)
Frequency Range:
30–512 MHz
Channel Spacing:
25 kHz or 12.5 kHz analog, 25 kHz digital
Preset Channels:
100 programmable memory channels—all mode information individually programmable per channel
Scanning:
Any or all analog channels in a group (up to 100)
Channel Programming:
From front panel, fill device, or remotely via computer
Modes:
Supports all Spectre V family hopping and encryption modes
Encryption:
AES-256 Digital Encryption—64-bit and 40-bit Spectre V crypto
ECCM:
Up to 58 MHz hopping in any region between 30 and 512 MHz. Fully compatible with PRC2100V and HH2100V Spectre V ECCM
GPS:
Internal GPS receiver with bullet antenna or connection to external antenna
Battery Pack:
Industry standard rechargeable Lithium-Polymer battery (73 Wh) delivering 10+ hours of mission life
Low Battery Indicator:
LCD battery icon
Antenna Port:
50 ohm N-type connector
Display:
LED backlit, multi-function LCD
Materials:
Metal construction
Operating Temperature:
-30ºC to 60ºC
Shock, Vibe, etc.:
MIL-STD-810G-compliant
Immersion:
1 meter for 30 minutes per IP67
RF Power Output:
500mW to 7W (three software-adjustable settings)
Duty Cycle:
Continuous service, all modes
Harmonics:
Better than -47 dBc
Sensitivity:
-116 dBm @ 12 dB SINAD
Squelch:
150 Hz tone, carrier, or CTCSS; compatible with many analog radios
Audio:
Better than 85 dBSPL from internal speaker
Scrambler:
HH7700, HH1077, and PRC1077 compatible scrambler
Product Codes
- Mfr Part No:HH3100M-SYS
- EDMO #:HH3100SYS
- Brand:MORCOM
- Category:Tactical Communication & Audio Systems
- SCHEDULE B CODE:8525.60.1055
