PinPoint Handheld Mount | Complete Kit

NELSON AVIATION TESTING

Call For Pricing

Available to order

EDMO # HH-KIT-1

MFR Part # NA-PP-HH-KIT-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Nelson Aviation PinPoint is a cutting-edge solution designed to assist technicians in streamlining wire access and troubleshooting without the need to disassemble the instrument panel. This tool is engineered to improve efficiency during maintenance and testing procedures, enabling technicians to quickly and safely complete post-installation checkout procedures, diagnose wiring issues, and troubleshoot with accuracy.

The PinPoint intuitively simplifies complex tasks, allowing technicians to access wiring points with minimal disruption to aircraft wiring systems. Whether performing routine checks, troubleshooting electrical systems, or ensuring compliance with STC-required procedures, PinPoint is the preferred tool for achieving fast and accurate results.

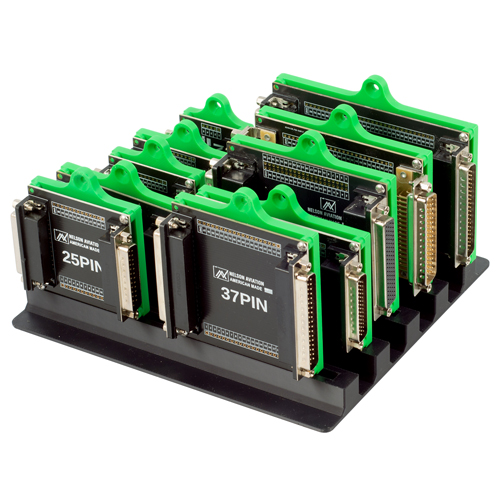

This PinPoint Handheld kit (EDMO# HH-KIT-1) includes the following components:

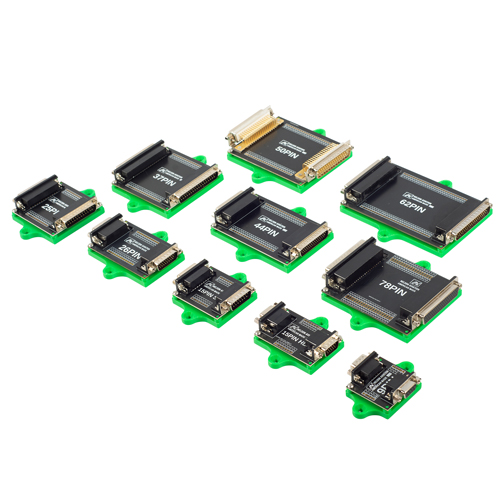

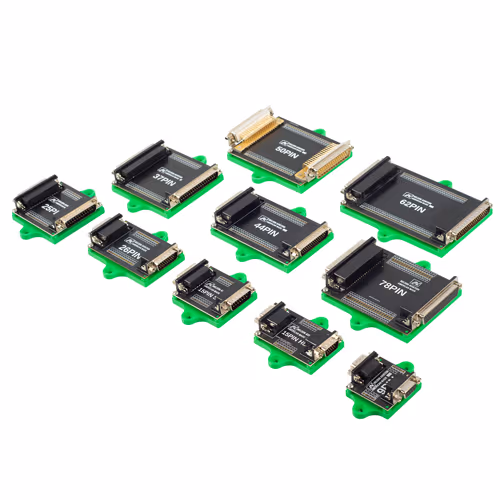

9-pin, 15-pin SD, 15-pin HD, 25-pin, 26-pin, 37-pin, 44-pin, 50-pin, 62-pin ,78-pin with stand.

Features

No Panel Disassembly: Access wiring effortlessly without the need to remove panels, saving valuable time and reducing risk.
STC-Required Procedures: Streamline Post-Installation Checkout Procedures and ensure compliance with regulatory standards.
Efficient Troubleshooting: Quickly identify and resolve wiring issues with ease, minimizing downtime and improving system reliability.
User-Friendly Design: Engineered with simplicity in mind, the PinPoint is easy to use, even for complex diagnostics.
