HD51 6 Ton Manual Hydraulic Form Crimp Tool
Product Description

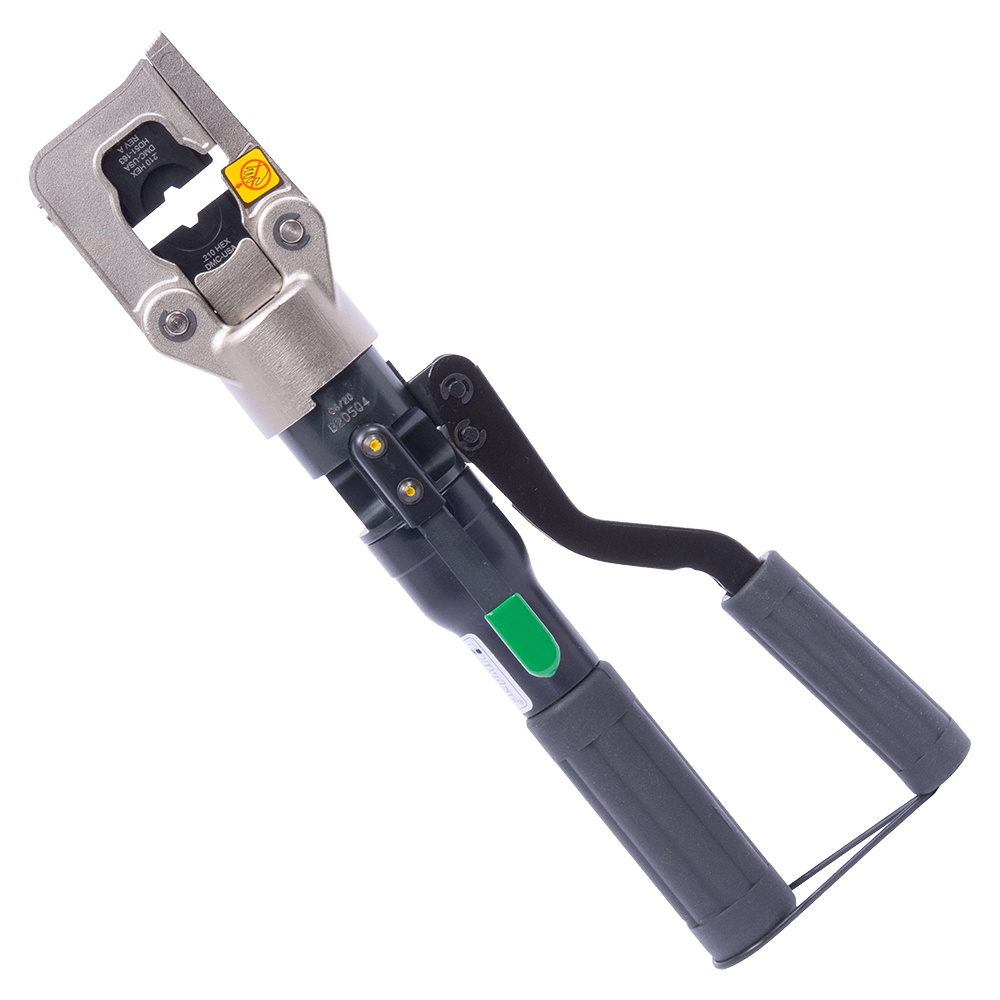

The HD51 hydraulic crimp tool is intended to crimp terminals onto copper and aluminum cables with DMC’s HD51 die sets. This small hand-held tool provides 6 tons of crimp force and up to 2/0 AWG conductors in many applications. It also features an automatic relief valve to prevent over-compression.
The HD51 hydraulic crimper features rugged construction and comfortable handle grips for the best ergonomic advantage. The number of handle closures required to complete the crimp is reduced by the larger and more efficient hydraulic pump system. The DMC1383 tool kit contains the HD51 hand tool and 12 dies for crimping insulated terminals ranging from 8 to 2 AWG and uninsulated terminals ranging from 8 to 2/0 AWG.
Features
Release lever for relaxing crimp pressure and opening dies
180º rotating head for ease in confined work areas.
Uses HD51 Series Dies
M5259/5-01
Specifications
Weight:
4.6 lb (2.08 kg)
Dimensions:
14.9 x 5.7 x 2.5 in (378 x 145 x 64 mm)
Max Crimp Force:
6 tons (53 kN)
Insulated Terminals:
8–2 AWG
Uninsulated Terminals:
8–2/0 AWG
Product Codes
- Mfr Part No:HD51
- EDMO #:HD51
- Brand:DANIELS MFG
- Category:Tools & Cases
- ECCN:EAR99
- ECCN:EAR99
- SCHEDULE B CODE:8203.20.6060
- SCHEDULE B CODE:8203.20.6060
