H-MB Solder Termination Sleeve | 0.170 – 0.200in, Nickel-Plated, 150°C
Product Description
H-MB series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

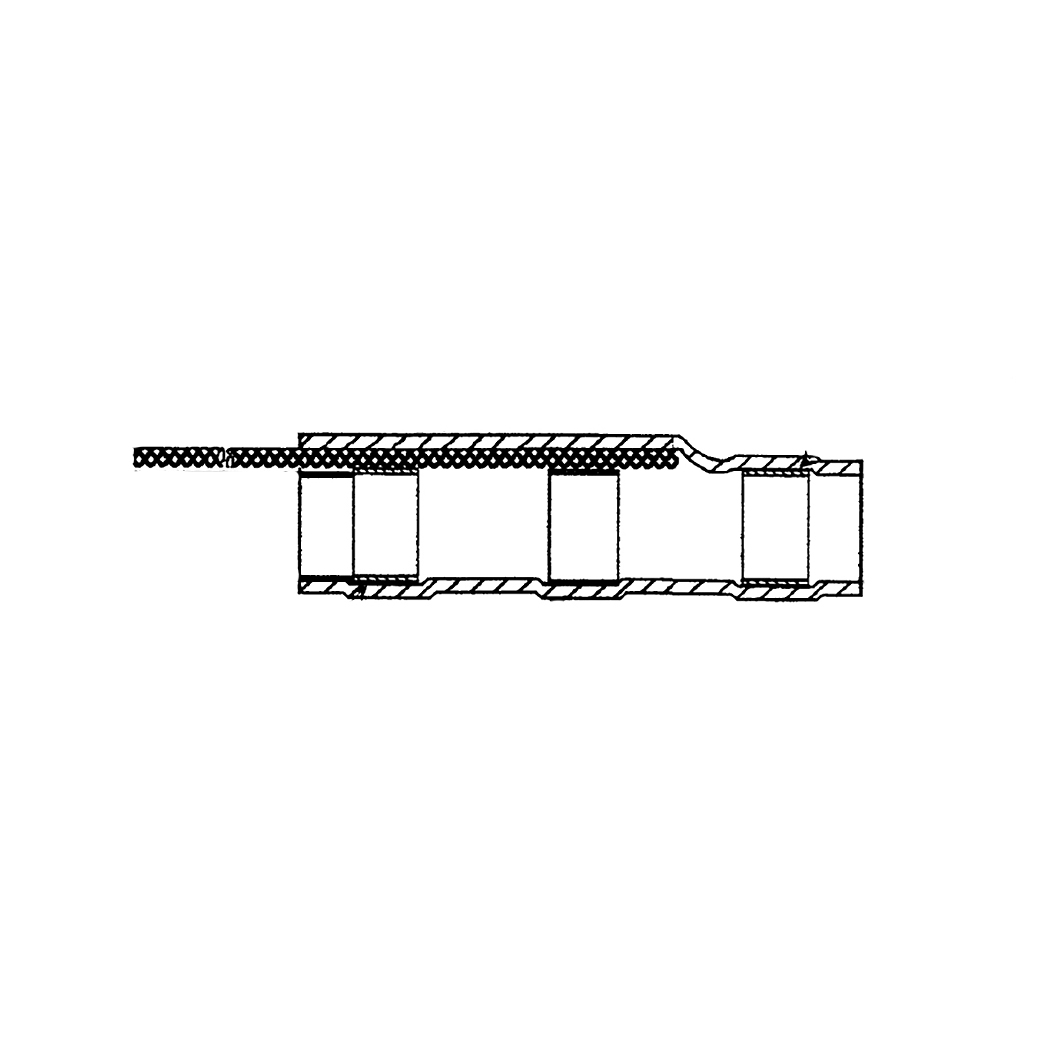

This H-MB solder sleeve terminal (EDMO# H-MB-306N) fits wire diameters of 0.050 (ØG) – 0.170 (ØH) inch. Includes six-inch, nickel-plated, braid. *see diagram
Features
- Includes six-inch, nickel-plated, pre-installed braid type per QQ-B-575
- Mil-Spec. AS83519/1 Qualified
- Immersion Resistant
- 150°C Operating Temperature
- 183°C Solder Melt Temperature
- Convection or infrared heated installation
- Sn63 RMA flux with thermochromic indicator
Specifications
Cable Size:
ØG–ØH: 0.050 – 0.170in in (see diagram)
Operating Temperature:
-55°C to 150°C
Solder Melt Temperature:
183°C
Solder Type:
Sn63 (63% tin ,37% lead)
Temperature Indicating Paint (TI):
yes
Jacket Type:
Radiation cross-linked, modified polyvinylidene per MIL-l-23053/8
Lead Wire Include:
No
Braid Included:
Yes
Environmental Seals:
Yes
RoHS Compliant:
No
Flux:
RMA
Product Codes
- Mfr Part No:STS H-MB-306N
- EDMO #:H-MB-306N
- Brand:SUMITOMO
- Category:Electrical Interconnect
