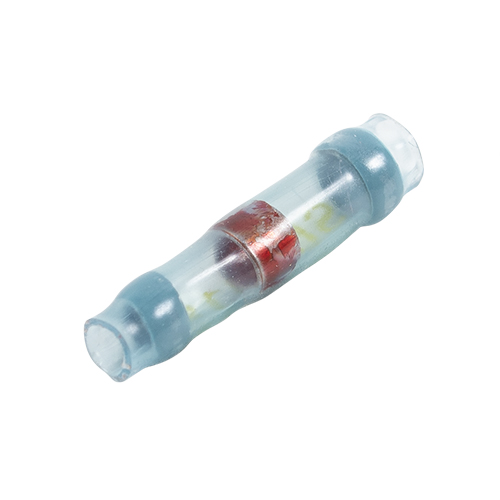

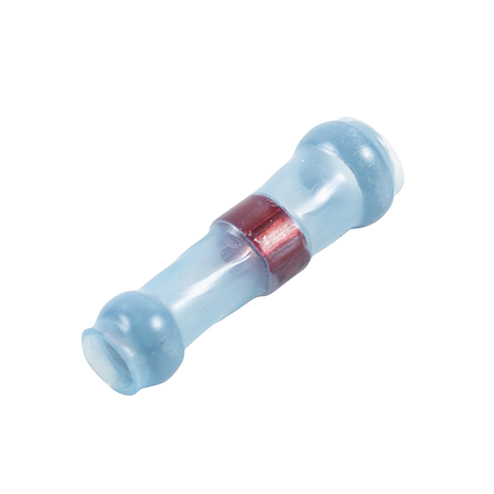

H-M Immersion Resistant Solder Sleeve | 0.030 – 0.105in, 150°C

Product Description

H-M-series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

This H-M solder sleeve terminal (EDMO# H-M-2) fits wire diameters of 0.030 – 0.105 inch (øD4). No lead or braid. *see Datasheet

Specifications

• Cable Size:
  ØD4: 0.030 – 0.105 in (see datasheet)
• Operating Temperature:
  -55°C to 150°C
• Solder Melt Temperature:
  183°C
• Solder Type:
  Sn63 (63% tin ,37% lead)
• Temperature Indicating Paint (TI):
  yes
• Jacket Type:
  Kynar
• Lead Wire Include:
  No
• Braid Included:
  No
• Environmental Seals:
  Yes
• RoHS Compliant:
  No
• Flux:
  RMA

Product Codes

• Mfr Part No
  H-M-2
• MIL SPEC
  M83519/1-2
• ECCN
  EAR99
• MIL SPEC
  M83519/1-2
• NSN
  5940-01-136-2540
• SAE
  AS83519/1-2
• SCHEDULE B CODE
  8536.90.4000

Documentation

• STS-H-M series solder sleeve datasheet
