H-M Immersion Resistant Solder Sleeve | 0.020 – 0.075in, 150°C
Product Description
H-M-series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

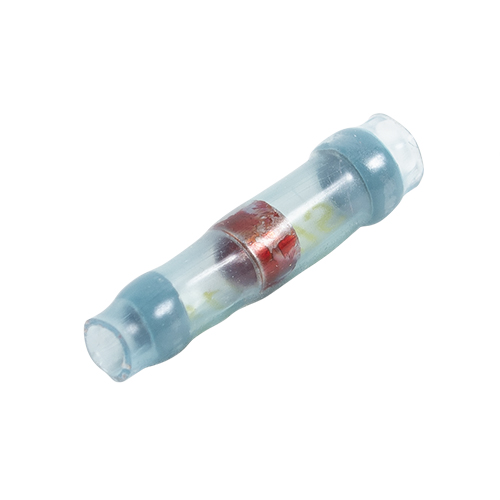

This H-M solder sleeve terminal (EDMO# H-M-1) fits wire diameters of 0.020 – 0.075 inch (øD4). No lead or braid. *see Datasheet
Features
- Mil-Spec. AS83519/1 Qualified
- Immersion Resistant
- 150°C Operating Temperature
- 183°C Solder Melt Temperature
- Convection or infrared heated installation
- Sn63 (RMA flux)
Specifications
Cable Size:
ØD4: 0.020 – 0.075 in (see datasheet)
Operating Temperature:
-55°C to 150°C
Solder Melt Temperature:
183°C
Solder Type:
Sn63 (63% tin ,37% lead)
Temperature Indicating Paint (TI):
yes
Jacket Type:
Kynar
Lead Wire Include:
No
Braid Included:
No
Environmental Seals:
Yes
RoHS Compliant:
No
Flux:
RMA
Product Codes
- Mfr Part No:189-10176
- EDMO #:H-M-1
- Brand:SUMITOMO
- Category:Electrical Interconnect
