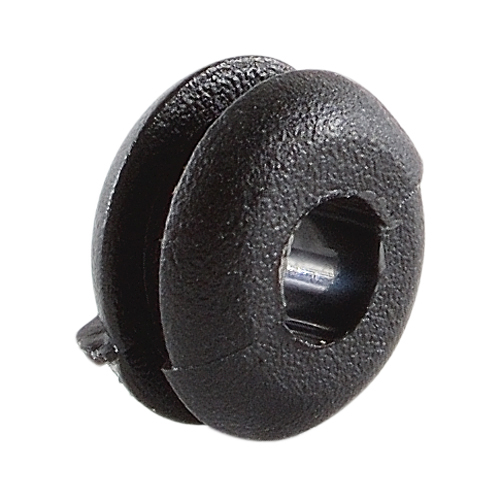

Vinyl Grommet | Fits 1/4-in Holes

Vinyl Grommet | Fits 1/4-in Holes

Product Description

GV Series Vinyl Grommets are inexpensive, flexible, and oil resistant. They feature a high dielectric strength and have excellent aging qualities.

This GV series vinyl grommet (EDMO# GV-1/4) fits into 1/4-inch panel holes.

Features

Flexible, inexpensive, and resists oil
High dielectric strength
Excellent aging qualities
Hardness Durometer: 60 ±5 Shore A
Tensile Strength: 1400 psi
Abrasive Resistance: Excellent
Effect of Sunlight: Slight to None
Hydro Carbon Solvent Resistance: Good
Weak Acid Resistance: No Effect
Burning Rate: Self Extinguishing

Specifications

Inside Diameter (Dimension A):
0.125 in (3.18 mm)

Panel Thickness (Dimension B):
0.063 in (1.60 mm)

Overall Diameter (Dimension C):
0.344 in (8.74 mm)

Overall Height (Dimension D):
0.188 in (4.78 mm)

Panel Hole Diameter (Dimension E):
0.250 in (6.35 mm)

Product Codes

Mfr Part No:GV-1/4
EDMO #:GV-1/4
Brand:ICO RALLY
Category:Wire, Cable & Accessories
ECCN:EAR99
ECCN:EAR99
SCHEDULE B CODE:3926.90.9887
SCHEDULE B CODE:3926.90.9887
