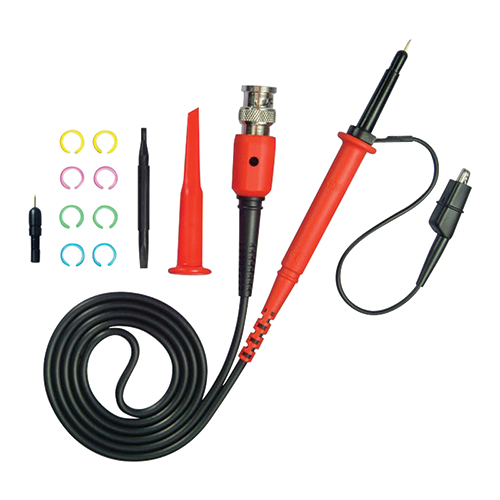

GE3425 High Voltage Oscilloscope Probe | 100 MHz, 1% Accuracy, 100 MΩ
Product Description
The GE Series is a high quality, easy to use family of 5 mm passive voltage oscilloscope probes in stylish, slim-line bodies. These probes feature superior input impedances for enhanced measurement performance when compared to other oscilloscope probes.
Model GE3425 is a high voltage, high accuracy 100x passive voltage probe with a 100 MΩ input impedance. The low voltage coefficient (VCR) allows for a 1% accuracy at high voltage measurements.
Features
- 100 MHz (-3 dB) bandwidth
- High impedance input (100 MΩ/≈5 pF)
- 4,000 V CAT II
- Voltage Coefficient (VCR) ≤0.5 ppm/V
- Slim, stylish body
- Snap-Locking Sprung Hook
- Easily replaceable tip
- Large accessory set
- Meets IEC 61010-031
- RoHS compliant
Specifications
Weight:
70 g
Cable Length:
1.2 m or 2 m
Probe Barrel Diameter (Ground Point):
5 mm
Bandwidth:
100 MHz
Attenuation:
100x
Input Impedance:
100 MΩ
Input Capacitance:
≈ 5 pF
Output Impedance:
1 MΩ
Risetime:
3.5 ns
IEC Rating:
4,000 V CAT II
Compensation:
10–30 pF
Voltage Coefficient (VCR):
0.5 ppm/V (1%)
Operating Temperature:
0ºC to 50ºC
Humidity:
85% RH or Less (at 35ºC)
RoHS (2011/65/EU):
Compliant
Product Codes
- Mfr Part No:GE3425
- EDMO #:GE3425
- Brand:CAL TEST ELECTRONICS
- Category:Wire & Cable Testers
