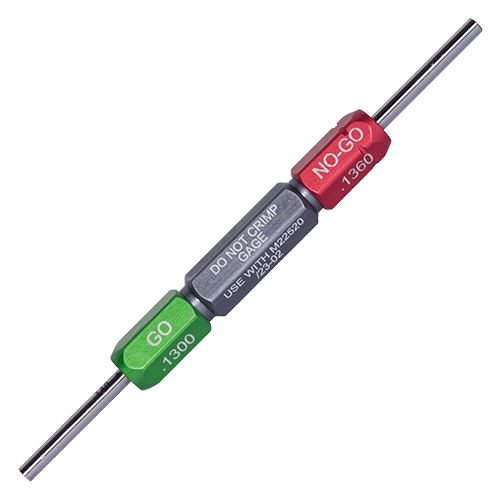

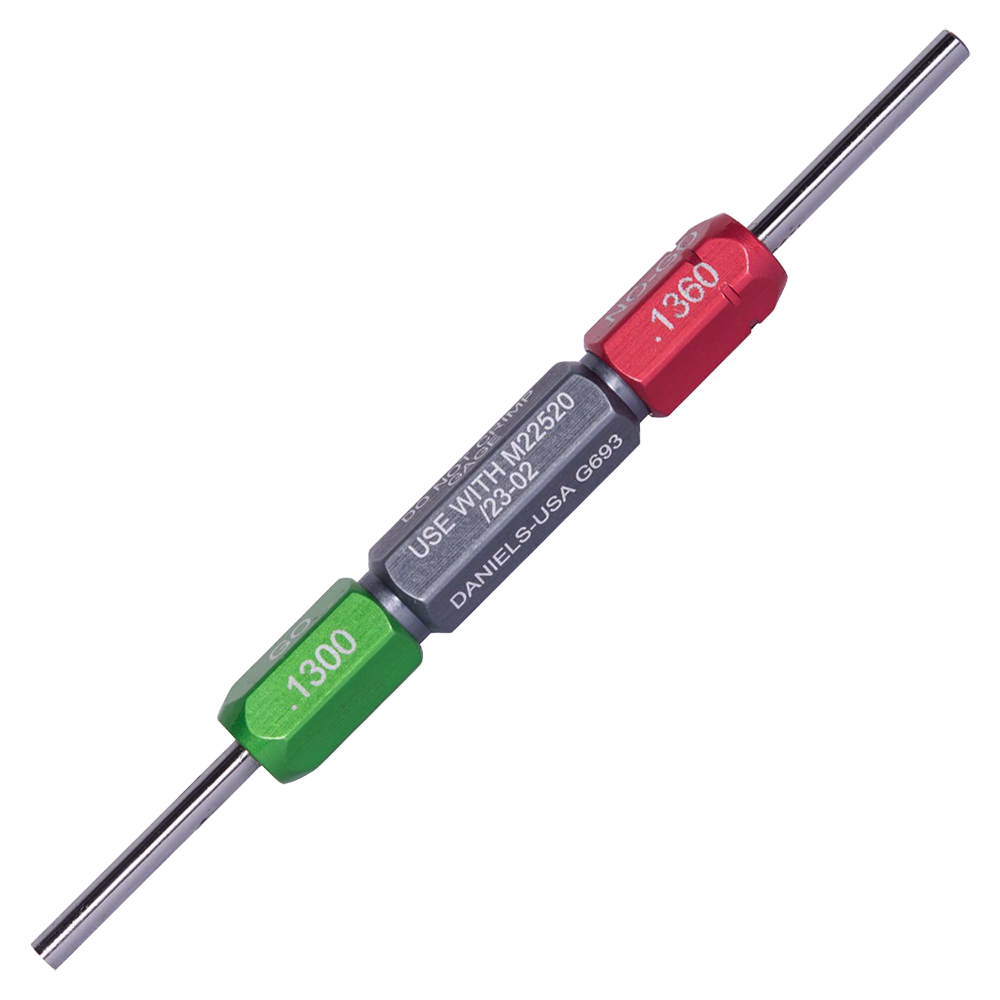

G693 GO/NO-GO Gage | GO 0.1300, NO-GO 0.1360

G693

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#G693
MFR#G693

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

DMC designed easy-to-use Go/No-Go gages to verify tolerances and ensure our extensive line of qualified crimp tools are in specification. Gages can be designed in round, flat, stepped, or specialty configurations based on application and are compatible with indent or form crimp tools.

This go/no-go gauge (EDMO# G693) is used with the WA23-2 die assembly and has a gage range of 0.1300 (GO) to 0.1360 (NO-GO).

Features

  • Gage Tolerances: GO 0.1300 – NO-GO 0.1360
  • Used with the WA23-2 Die Set Assembly

Specifications

Weight:
0.131 lb

Length:
2.50 in, approx. (handle)

Tolerance:
GO: 0.1300 ± 0.0001
NO-GO: 0.1360 ± 0.0001

Product Codes

  • Mfr Part No:G693
  • EDMO #:G693
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • SCHEDULE B CODE:8203.20.6060
  • SCHEDULE B CODE:8203.20.6060
