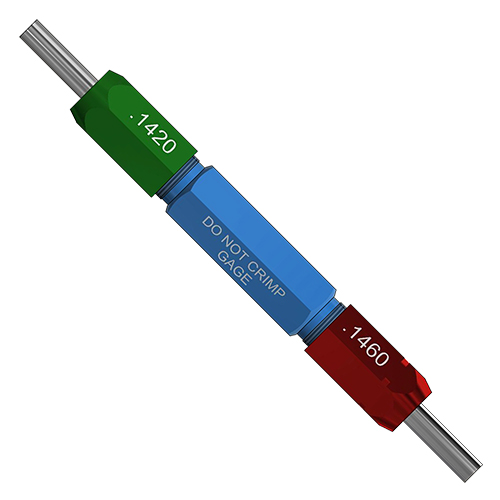

G443 GO/NO-GO Gage | GO 0.1420, NO-GO 0.1460

G443

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#G443
MFR#G443

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

DMC designed easy-to-use Go/No-Go gages to verify tolerances and ensure our extensive line of qualified crimp tools are in specification. Gages can be designed in round, flat, stepped, or specialty configurations based on application and are compatible with indent or form crimp tools.

This go/no-go gauge (EDMO# G443) is used with the GS200-1 Circular Indent Crimp Tool and has a gage range of 0.1420 (GO) to 0.1460 (NO-GO).

Features

  • Gage Tolerances: GO 0.1420 – NO-GO 0.1460
  • Used with the GS200-1 Circular Indent Crimp Tool

Specifications

Weight:
0.131 lb

Length:
2.50 in, approx. (handle)

Tolerance:
GO: 0.1420 ± 0.0001
NO-GO: 0.1460 ± 0.0001

Product Codes

  • Mfr Part No:G443
  • EDMO #:G443
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • ECCN:EAR99
  • ECCN:EAR99
  • MIL SPEC:M22520/3-15
  • MIL SPEC:M22520/3-15
  • MIL SPEC:M22520/3-15
  • MIL SPEC:M22520/3-15
  • MIL SPEC:M22520/3-15
  • SCHEDULE B CODE:8203.20.6060
  • SCHEDULE B CODE:8203.20.6060
