G1151 GO/NO-GO Gage | GO 0.0520, NO-GO 0.0570

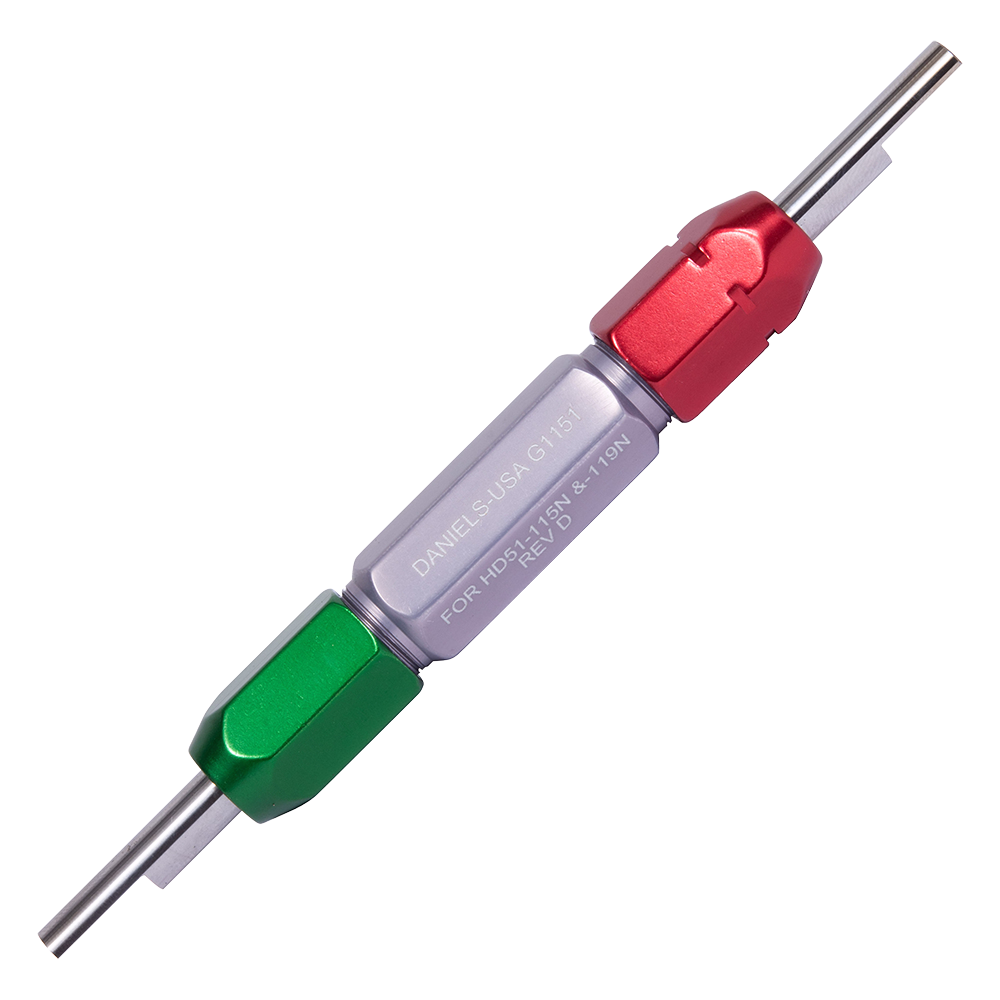

G1151_1

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#G1151
MFR#G1151

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

DMC designed easy-to-use Go/No-Go gages to verify tolerances and ensure our extensive line of qualified crimp tools are in specification. Gages can be designed in round, flat, stepped, or specialty configurations based on application and are compatible with indent or form crimp tools.

This go/no-go gauge (EDMO# G1151) is used on the HD51-115N, HD51-119N, and HD51-200 die sets and has a gage range of 0.0520 (GO) to 0.0570 (NO-GO).

Features

  • Gage Tolerances: GO 0.0520 – NO-GO 0.0570

  • Used with the HD51-115N, HD51-119N, and HD51-200 die sets

Specifications

Weight:
0.131 lb

Length:
3.31 in, approx. (handle)

Tolerance:
GO: 0.0520 ± 0.0001
NO-GO: 0.0570 ± 0.0001

Product Codes

  • Mfr Part No:G1151
  • EDMO #:G1151
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • SCHEDULE B CODE:8203.20.6060
