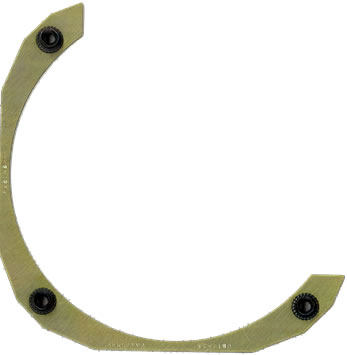

NUT RING/Instrument mounting nut ring with brass screws and nylon locking patch. Size 3.125/6-32

NUT RING/SHELL SIZE 3.125/6-32
Lightweight brackets with self-wrenching, self-locking press nuts.
Eliminates the risk of loose hardware behind the panel.
Quick and easy installation.

KIT INCLUDES:

• BRACKET,

• 3-4 SCREWS,

• 2 THREADED INSTALL GUIDES.

• INSTALL INSTRUCTIONS

• INSTRUCTIONS FOR CONTINUED AIRWORTHINESS.

NOTE:

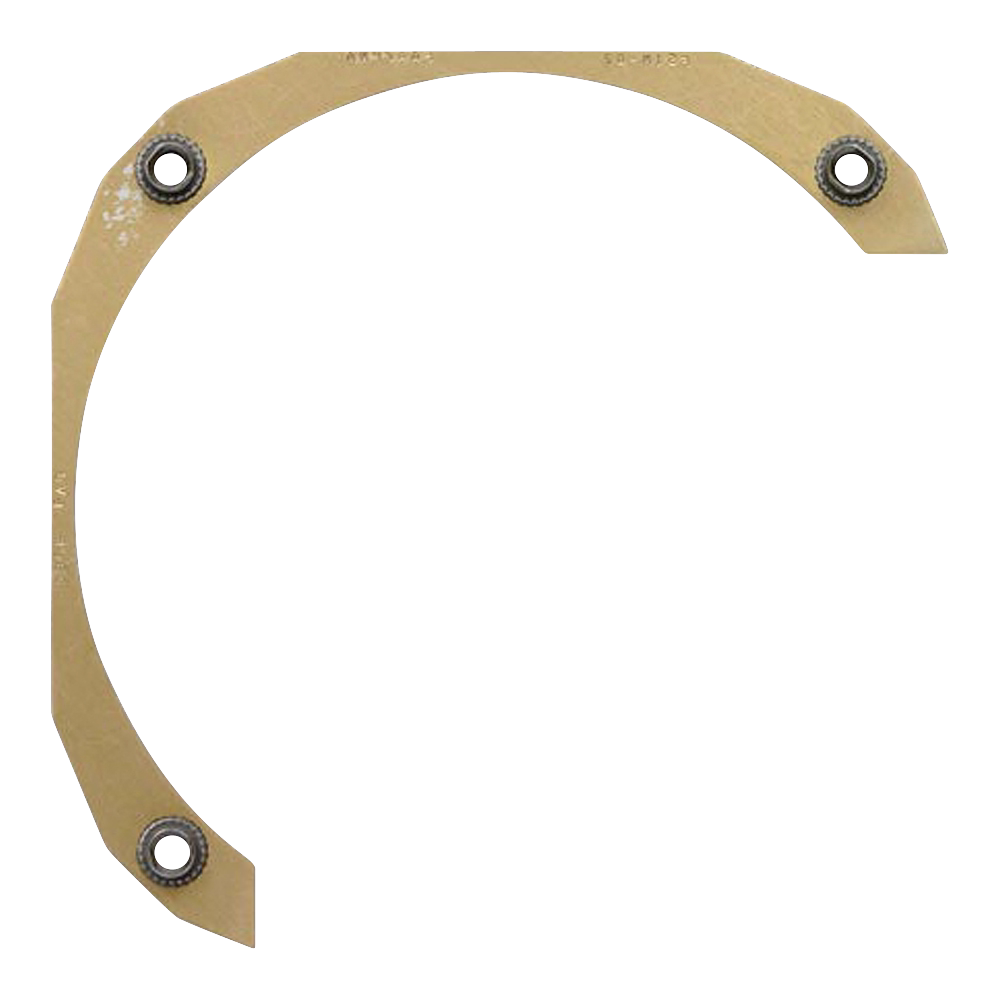

BN in part number indicates optional Brass Screws with nylon locking patch and free spinning pressnuts.

Part No. Shell Size T THRD UNC-3B A B C D F CH FSIM-01 3.125 6-32 2.475 3.360 3.160 .123/.183 22 .25 x 45 FSIM-02 3.125 6-32 2.475 3.360 3.160 .123/.183 22 .25 x 45 FSIM-03 2.250 6-32 1.865 2.530 2.290 .123/.183 15 .25 x 45
