FSIM-01 Nut Ring | 3.125-inch Shell Size, 6-32 Self-Locking Pressnuts, 4 Stainless Steel Mounting Screws, 0.040-inch 6061-T6 Aluminum Retainer, Alodine Finish
Product Description
Fastener Specialty, Inc. nut rings provide a secure, convenient solution for mounting electrical connectors and other components in aircraft panels and bulkheads. Featuring lightweight aluminum retainers and self-locking nuts, these assemblies simplify installation, eliminate loose hardware, and help prevent fasteners from falling into sensitive equipment areas. Available in a variety of sizes and configurations to accommodate different installation requirements.

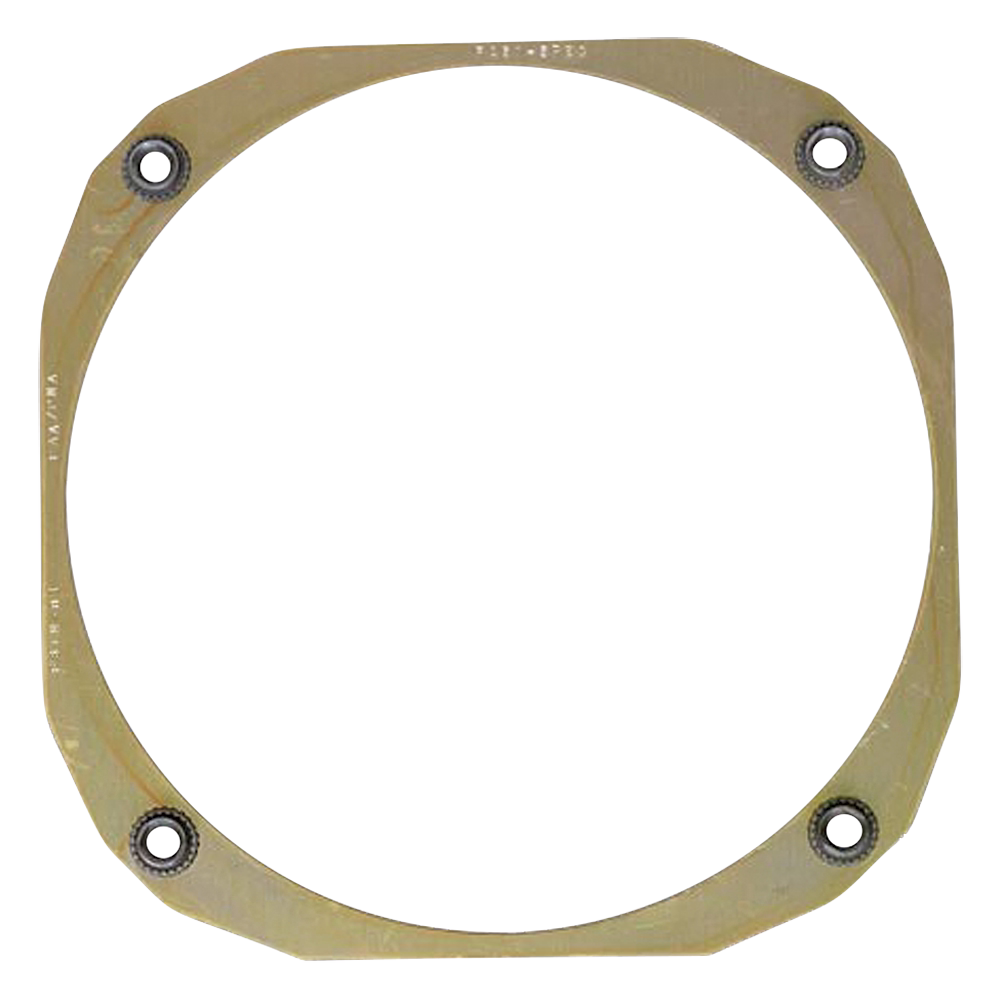

This nut ring (EDMO# FSIM-01) has a 3.125-inch shell, 6-32 self-locking stainless steel pressnuts and 4 mounting screws, and a 0.040-inch thick 6061-T6 aluminum retainer with Alodine finish.
Features
Provides reliable support for electrical connectors and panel-mounted components
Combines retaining hardware and self-locking nuts in a convenient assembly
Designed to meet aircraft installation needs while minimizing added weight
Available in various sizes and configurations to accommodate different connector and mounting requirements
Helps prevent loose hardware from falling into sensitive aircraft equipment areas
Specifications
Dimensions:
3.360 x 3.360 x 0.183 in
Ring Diameter:
3.160 in
Shell Size:
3.125 in
Thread Size:
6-32
Retainer Material:
0.040-inch 6061-T6 Aluminum
Retainer Finish:
Alodine per MIL-C-5541
Pressnut Type:
Self-Locking, Cadmium Plated Stainless Steel
Mounting Screws:
4 Screws, Black Oxide Stainless Steel
Product Codes
- Mfr Part No:FSIM-01
- EDMO #:FSIM-01
- Brand:FASTENER SPECIALTY
- Category:Avionics & Instrument Mounting
- ECCN:EAR99
- ECCN:EAR99
- MIL SPEC:MIL-C-85528
- MIL SPEC:MIL-C-85528
- SCHEDULE B CODE:7606.92.6095
- SCHEDULE B CODE:7606.92.6095
