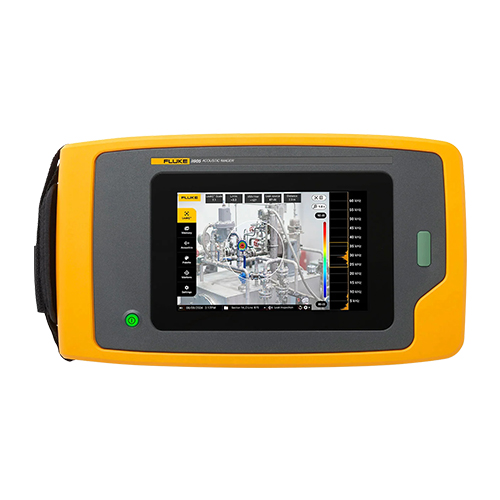

Fluke ii905 Acoustic Imager
Product Description
The Fluke ii905 Acoustic Imager equipped with LeakQ™ acoustic leak detection technology empowers maintenance teams to efficiently detect, locate, and assess gas and vacuum leaks. Whether you're dealing with compressed air systems, pipelines, or industrial equipment, the Fluke ii905 provides valuable insights to optimize your operations.
Features
- Ready-to-Use: The Fluke ii905 comes ready out of the box. Its rugged, ergonomic design ensures easy handling, while the large 7" LCD display provides clear leak visualization.
- Quick Detection: Even users with minimal experience can start detecting leaks within minutes. The tool estimates leak size and cost, incorporating a new distance-estimation feature and the 1-10 LeakQ™ severity index.
- SoundMap™ Overlay: The 7" LCD touchscreen overlays a SoundMap™ on visual images, facilitating rapid leak location identification.
- Intuitive Interface: Easily isolate leak sound frequencies and filter out background noise.
- Tagging and Organization: Use image and video tagging, annotation, and folders for efficient organization.
- Leak Sizing: Prioritize repairs based on leak size.
- Collaboration: The reporting tool allows seamless sharing of visuals, tagging, and notes with team members and repair personnel.
Specifications
Weight:
4.4 lb (2.0 kg)
Dimensions:
7.3 x 12.7 x 2.7 in (186 x 322 x 68 mm)
Tripod Holder/Connector:
Yes: 1/4"-20
USB:
2 x USB-C
Wireless:
Wi-Fi
Operating Temperature:
14°F to 113°F (-10°C to 45°C)
Storage Temperature:
-4°F to 158°F (-20°C to 70°C) without batteries installed
Relative Humidity:
10 to 95 % non-condensing
Ingress Protection (IP):
IP40
Self-Diagnostic Notification:
Array-health test to identify when microphone array needs attention
Supported Languages:
Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
RoHS Compliant:
Yes
Sensor:
Frequency Band:
2 kHz to 65 kHz
Detection Range:
1.6 to > 230 ft (0.5 to > 70 m)
Field of View (FOV):
63°± 5°
Nominal Frame Rate:
25 FPS
Built-in Digital Camera (Visible Light):
Field of View (FOV):
63°± 5°
Focus:
Fixed Lense
Zoom:
3x Digital Zoom
Resolution:
5.0 MP
Display:
Size:
7" LCD with backlight, sunlight readable
Resolution:
1280 x 800 (1,024,000 pixels)
Touchscreen:
Capacitive
Acoustic Image:
SoundMap™ image
Image Storage:
Storage Capacity:
32 GB (> 8,000 pictures / > 1,600 videos)
Image Format:
Blended visual and SoundMap™ .JPG or .PNG
Video Format:
Blended visual and SoundMap™ .MP4
Video Length:
Up to 5 minutes
Digital Export:
USB-C for data transfer
Acoustic Measurements:
Measurement Range (typical):
15.4 to 115.2 dB SPL (± 1 dB SPL 2 kHz)
5.6 to 102.5 dB SPL (± 2 dB SPL 19 kHz)
28.4 to 131.1 dB SPL (± 1 dB SPL 35 kHz)
41.8 to 133.1 dB SPL (± 3 dB SPL 52 kHz)
Classification and Quantification:
LeakQ™:
Leak size scale, Leak rate, and Leak cost estimation
Auto Max/Min dB Gain:
Auto or manual, user selectable
Frequency Band Selection:
User selectable through user-made presets or manual entry
Battery Specifications:
Battery:
Rechargeable and field replaceable Li-ion battery
Battery Life:
6 hours
Battery Charging Time:
4 hours
Battery Charging System:
Internal (USB-C)
Software:
Ease of Use:
Intuitive user interface
Acoustics: Show dB Scale:
On/Off
Acoustics: Min/Max dB:
Manual/Auto
Acoustics: Profiles:
Preset capture profiles
Acoustics: Multiple Sources:
Show single or multiple sources
Palette: Colors:
3: Grayscale, Ironbow, and Blue-Red
Palette: Overly Transparency:
Yes: 1-100 %
Grayscale Mode
Yes
Centerpoint Markers
On/Off
Trend Graphs
Frequency and dB scale
Spotmarkers
dB level reading at center point of image
Leak Values:
Leak costs, Leak volume, LeakQ™ scale (1-10)
Master Admin Menu:
Yes
Annotation:
Asset Name; Asset ID; Asset Type; Leak Type; Gas Type; Pressure
Photo Notes:
Up to 4 photos notes for reference
Asset Inspection Status:
'As left', 'As found', 'Undetermined'
Asset ID:
Text input and automatic QR code based asset ID identification
Actions Annotation:
Action requirements, Action priority level, Action notes
Other:
Operating conditions, Weather notes
Product Codes
- Mfr Part No:FLUKE-II905
- EDMO #:FLUKEII905
- Brand:FLUKE
