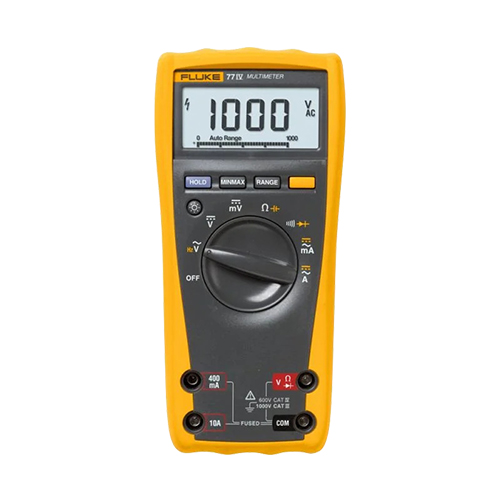

Fluke 77 IV Digital Multimeter
Product Description
The Fluke 77-IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke’s original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that’s easier to view.
Features
What's in the box:
- Fluke 77 IV Digital Multimeter
- (1 pair) Test leads
- 9V Battery (Installed)
- Quick reference guide
It measures:
- Wide 1000 V measurement range
- Average responding AC measurements
- 0.3% accuracy
- 10 Amps continuous (20 A for 30 seconds)
- Frequency and capacitance
- Resistance and continuity
Specifications
Weight:
420 g
Dimensions:
4.3 x 9 x 18.5cm
Maximum Voltage:
1000 V
Surge Protection:
8 kV peak per IEC 61010
Ω Fuse for mA Inputs:
440 mA, 1000 V FAST Fuse
Ω Fuse for A Inputs:
11 A, 1000 V FAST Fuse
Display:
Digital: 6000 counts, updates 4/sec
Bar Graph: 33 segments, updates 32/sec
Frequency: 10,000 counts
Capacitance: 1000 counts
Operating Altitude:
2,000 meters
Storage Altitude:
12,000 meters
Operating Temperature:
-10° to 50°C
Storage Temperature:
-40° to 60°C
Electromagnetic Compatibility:
In an RF field of 3 V/M, accuracy = specified accuracy except in temperature: specified accuracy ± 5°C
Relative Humidity:
90% to 35°C
75% to 40°C
45% to 50°C
Battery Life:
400 hours typical (alkaline)
Product Codes
- Mfr Part No:18M4542
- EDMO #:FLUKE77-4N
- Brand:FLUKE
- Category:Wire & Cable Testers
